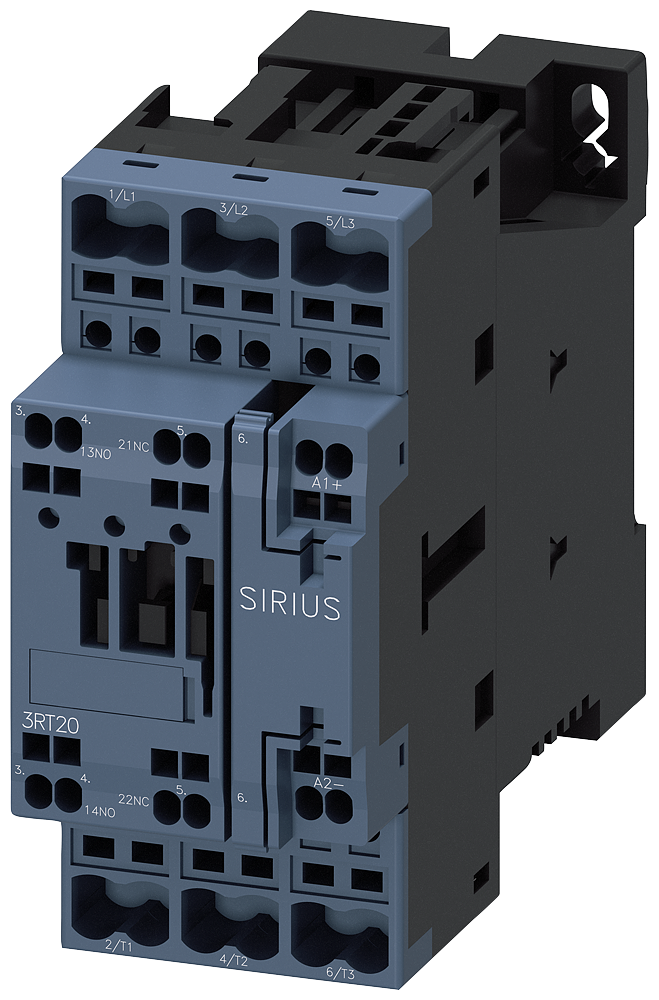

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-2BB40-0CC0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2025-2BB40-0CC0 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 16A, 1NO+1NC, Dc 24V, Com.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2025-2BB40-0CC0
- EAN / GTIN
- 4011209834262
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 102 mm
- Depth
- 107 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 17 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209834262
- SAP 1000097203
- Code 8938841
Product Documentation
More from Siemens
Siemens
Siemens Accessory for 3KD ST3, terminal cover short length, contains 8 pcs
3KD9304-5
Siemens
Siemens Circuit breaker 12
3RV2311-1KC20
Siemens
Siemens SENTRON 3VA9150-0WB00 — Auxiliary-circuit terminal, 3VA11
Siemens
Siemens S12 contactor, 250KW/400V/AC-3 3RT1076-6PP35
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE16-0AB0
Siemens
Siemens SIMATIC IFP1900 V2 PRO, 19 multi-touch display (16:9) with 1920X1080 pixel resolution 6AV78636MA162AA0
Siemens
Siemens SENTRON 5SY5150-6 Miniature Circuit Breaker 1-Pole B50A 10KA
Siemens
Siemens SIRIUS Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch, long, front ring for flush installation, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30H/12H
3SU1062-2EC60-0AA0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT2025-2BB40-0CC0?
- 3RT2025-2BB40-0CC0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT2025-2BB40-0CC0.
- What is the HS code for 3RT2025-2BB40-0CC0?
- The customs tariff (HS) code for 3RT2025-2BB40-0CC0 is 8536.90.
- Who manufactures 3RT2025-2BB40-0CC0?
- 3RT2025-2BB40-0CC0 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT2025-2BB40-0CC0?
- Yes — the 3RT2025-2BB40-0CC0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT2025-2BB40-0CC0?
- The minimum order quantity is 1.
- Is 3RT2025-2BB40-0CC0 available?
- Yes — 3RT2025-2BB40-0CC0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
