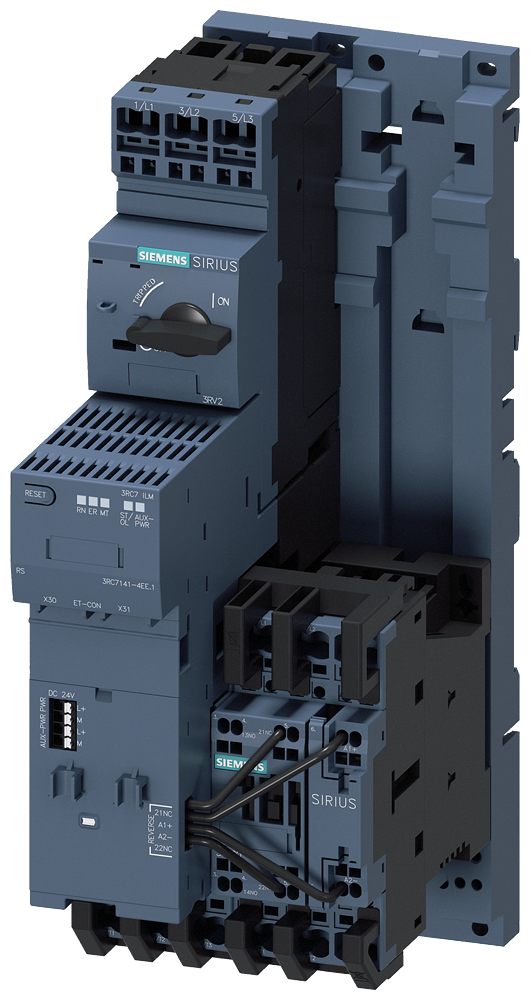

Siemens Complete ILM for direction of rotation, 3,2-32AMP
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RA8522-4EE10 Complete ILM for direction of rotation, 3,2-32Amp. This is pre-assembled sammensatt with 3RV+3RT.
Technical Specifications
- Manufacturer part number (MPN)
- 3RA8522-4EE10
- EAN / GTIN
- 4047621109978
- Sales unit
- pcs
- Width
- 90 mm
- Height
- 269.4 mm
- Depth
- 173.5 mm
- Power consumption
- 1.3 W
- Rated operation power at AC-3, 400 V
- 15000 kW
- Rated operation current Ie
- 32 A
- Degree of protection (IP)
- IP20
- Release class
- Adjustable
- Type of electrical connection of main circuit
- Spring clamp connection
- Voltage type for actuating
- DC
- Type of motor starter
- Reversing starter
- Rated operation power at AC-3, 230 V, 3-phase
- 15000 kW
- Rated power, 460 V, 60 Hz, 3-phase
- 15000 kW
- Rated power, 575 V, 60 Hz, 3-phase
- 18500 kW
- Rated operation current at AC-3, 400 V
- 32 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Rated conditional short-circuit current, type 2, 400 V
- 150000 A
- Rated conditional short-circuit current, type 2, 230 V
- 150000 A
- Rated conditional short-circuit current, type 1, 480 Y/277 V
- 50000 A
- Rated conditional short-circuit current, type 1, 600 Y/347 V
- 30000 A
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4047621109978
- SAP 1200841020
- Code 84032580
