Siemens Complete ILM for direction of rotation, 0,4-4AMP
Pricing
Request a quote
We reply within 24 hours
Product Description

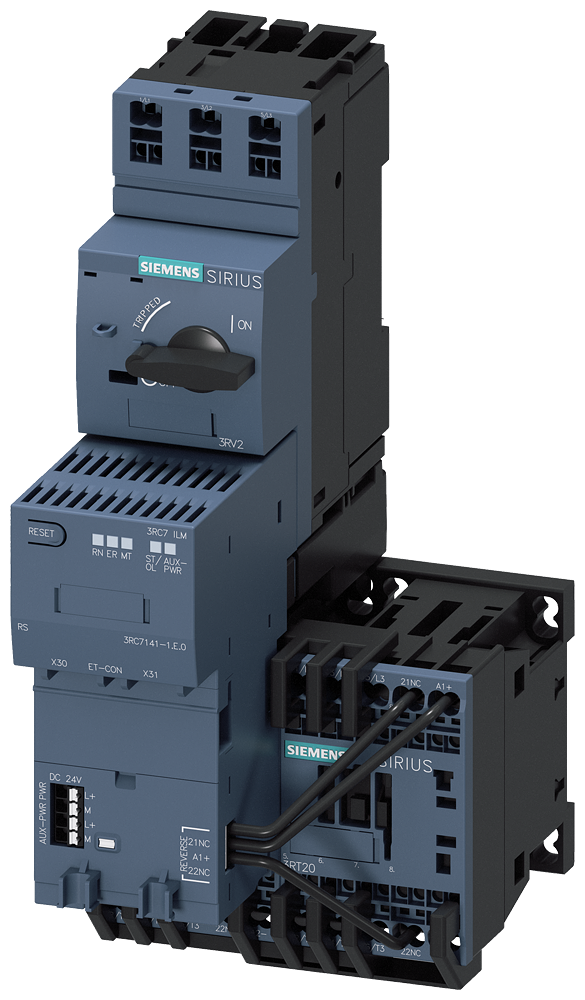

Siemens 3RA8512-1EE10 Complete ILM for direction of rotation, 0,4-4Amp. This is pre-assembled sammensatt with 3RV+3RT.
Technical Specifications
- Manufacturer part number (MPN)
- 3RA8512-1EE10
- EAN / GTIN
- 4047621109954
- Sales unit
- pcs
- Width
- 90 mm
- Height
- 204 mm
- Depth
- 131 mm
- Power consumption
- 0.9 W
- Rated operation power at AC-3, 400 V
- 1500 kW
- Rated operation current Ie
- 4 A
- Degree of protection (IP)
- IP20
- Release class
- Adjustable
- Type of electrical connection of main circuit
- Spring clamp connection
- Voltage type for actuating
- DC
- Type of motor starter
- Reversing starter
- Rated operation current at AC-3, 400 V
- 4 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- No
- Rated conditional short-circuit current, type 2, 400 V
- 150000 A
- Rated conditional short-circuit current, type 2, 230 V
- 150000 A
- Rated conditional short-circuit current, type 1, 480 Y/277 V
- 65000 A
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4047621109954
- SAP 1200841019
- Code 84032595
Product Documentation
