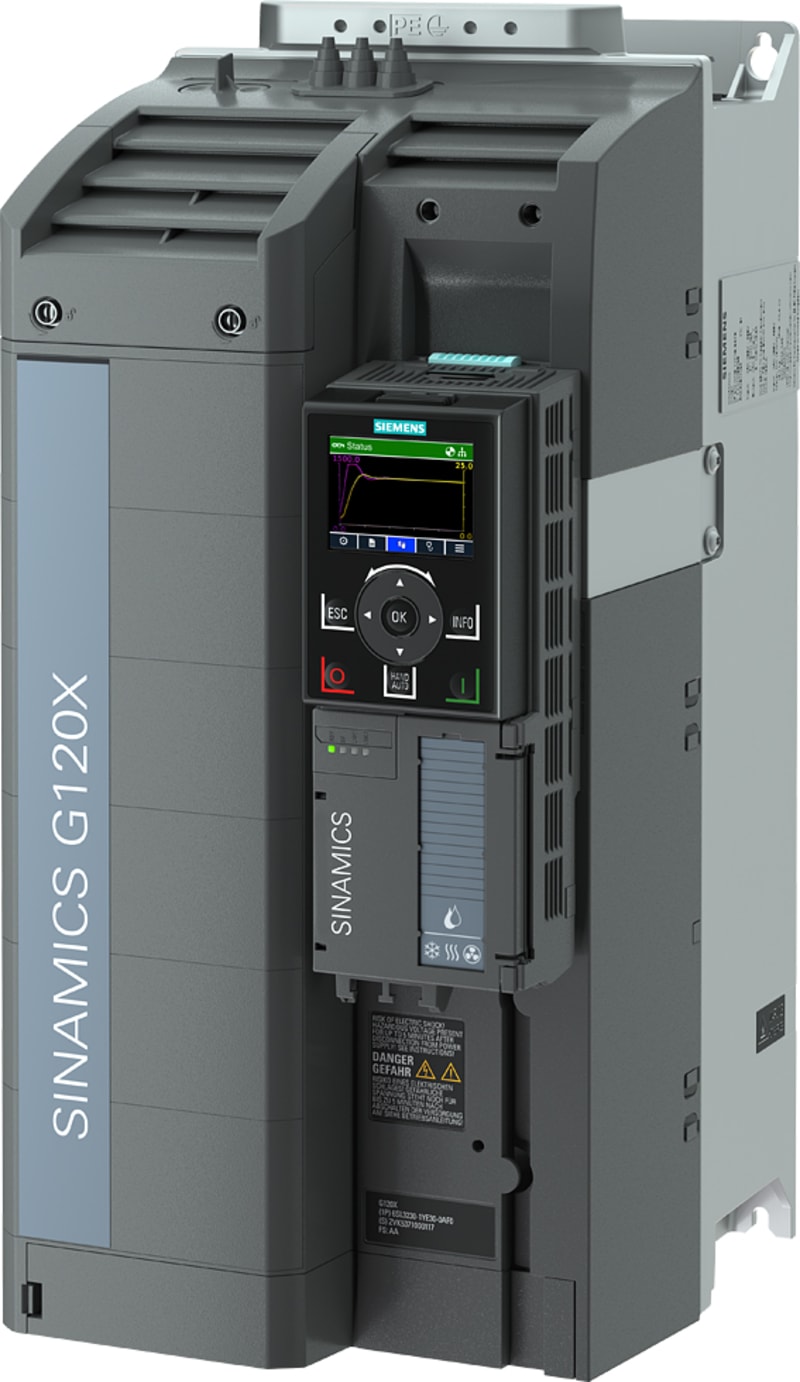

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE36-0AF0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3220-3YE36-0AF0 Variable-frequency drive for pump- and fan drive.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3220-3YE36-0AF0
- EAN / GTIN
- 4042948687932
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 200 mm
- Height
- 472 mm
- Depth
- 239 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 5
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP20
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 30 kW
- Max. output at quadratic load at rated output voltage
- 37 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Nominal output current I2N
- 77 A
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948687932
- SAP 1200338777
- Code 82335588
Product Documentation
More from Siemens
Siemens
Siemens 3SU1401-1BH50-1AA0 SIRIUS ACT LED module 24-240 V AC/DC blue screw
Siemens
Siemens Frameverk H2000/B1200/D400
8PQ1202-4BA02
Siemens
Siemens SENTRON 5SY4114-8 Miniature Circuit Breaker 1-Pole D0.3A 10KA
Siemens
Siemens 3-Phase busbar, firedobble
3RM1910-1BA
Siemens
Siemens MCCB_3VA21_4P_55KA_ETU350,LSI,IN=25A,IR=10A-25A,ISD=1,5-10XIR,II=12XIN,B
3VA2125-5HN42-0AA0
Siemens
Siemens SENTRON 3VA9487-0GC01 — Shaft rotary operating mechanism, 3VA2
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.70...1.00 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-0JA15-2BB4
Siemens

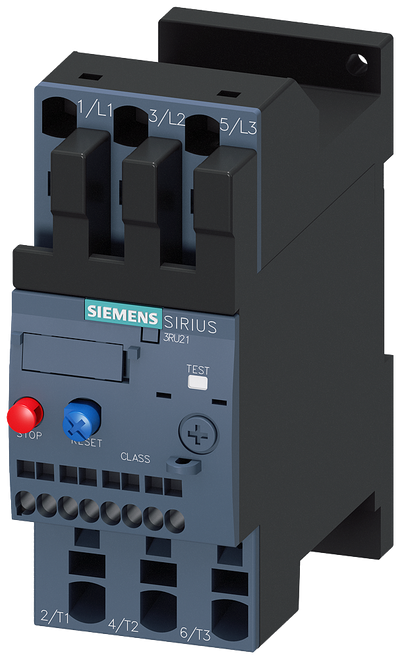

Siemens Thermal Overload Relay, 20-25 A, Spring Clamp Connection, Separate Mounting
