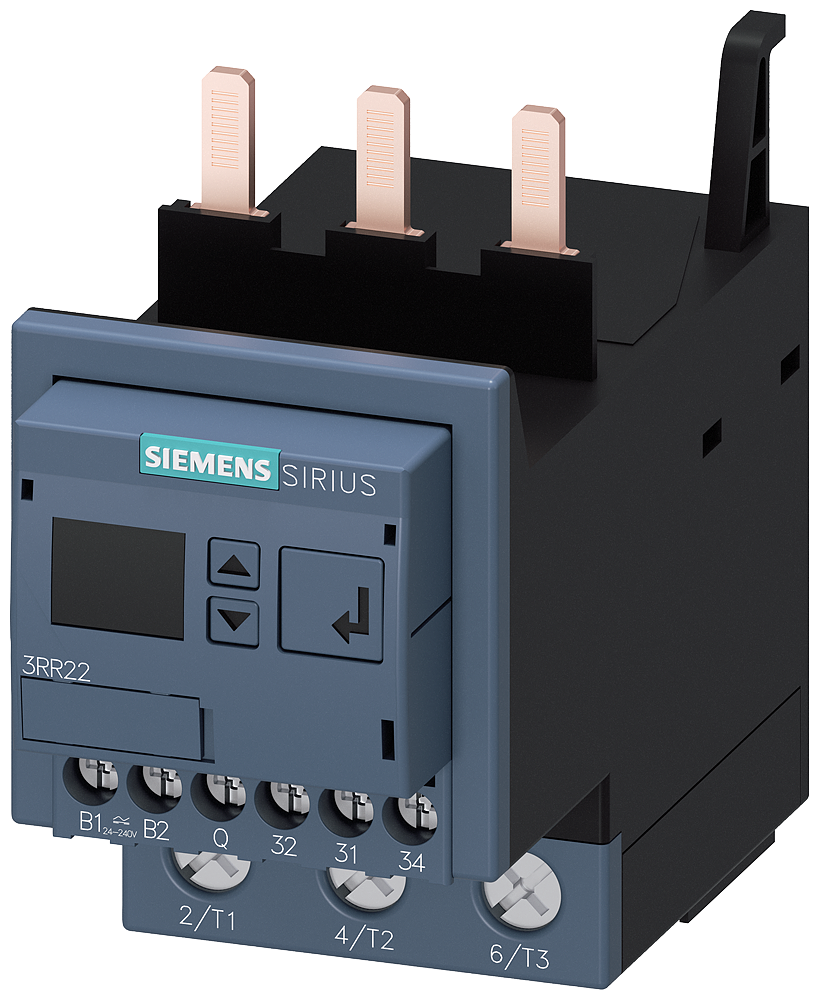

Siemens SIRIUS Current-monitoring relay,8..80A 3RR2243-1FW30
Pricing
Request a quote
We reply within 24 hours
Product Description
SIRIUS Current-monitoring relay,8.80A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RR2243-1FW30
- EAN / GTIN
- 4011209936195
- Sales unit
- pcs
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
- Supply voltage AC 50 Hz
- 24–240 V
- Supply voltage AC 60 Hz
- 24–240 V
- Supply voltage DC
- 24–240 V
- Response value amperage 1
- 8–80 A
- Response value amperage 2
- 8–80 A
- Type of current
- AC
- Voltage type (supply voltage)
- AC/DC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- Voltage type for actuating
- AC/DC
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 99 s
- Min. adjustable off-delay time
- 0 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- External current transformer
- No
- Width
- 55 mm
- Height
- 99 mm
- Depth
- 112 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209936195
- SAP 1000668592
- Code 8364800
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 5SY5214-7 Miniature Circuit Breaker 2-Pole C0.3A 10KA
Siemens
Siemens MCCB_3VA25_3P_85KA_ETU860,LSIG PROTECTION, IN=800A, IR=320A-800A, ISD=0,6-10XIN,II=1,5-10XIN,IG=0,2-1XIN
3VA2580-6KQ32-0AA0
Siemens
Siemens SENTRON 3VA9483-0JA13 — Copper (Cu) box terminal, 35–300 mm², 3VA23 / 3VA24
Siemens
Siemens S12 Vacuum contactor, 250KW/400 3RT1276-6LA06
Siemens
Siemens Load-break switch 1000A,size 5,6-Pole,1200VDC
3KD5060-0RE20-0
Siemens
Siemens Coil for size 3RT1965-5PP31
Siemens
Siemens Motor protection circuit breaker rated current 23-28A
3RV2121-4NA10
Siemens
Siemens Sivacon S4 Cover 3VA20_21_22 Vertical 3-4 POLE FAST Mounting 500X600
8PQ2055-6BA21
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RR2243-1FW30?
- 3RR2243-1FW30 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RR2243-1FW30.
- What is the HS code for 3RR2243-1FW30?
- The customs tariff (HS) code for 3RR2243-1FW30 is 8536.49.
- Who manufactures 3RR2243-1FW30?
- 3RR2243-1FW30 is a Siemens product in the Control & Automation range.
- Is a datasheet available for 3RR2243-1FW30?
- Yes — the 3RR2243-1FW30 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RR2243-1FW30?
- The minimum order quantity is 1.
- Is 3RR2243-1FW30 available?
- Yes — 3RR2243-1FW30 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
