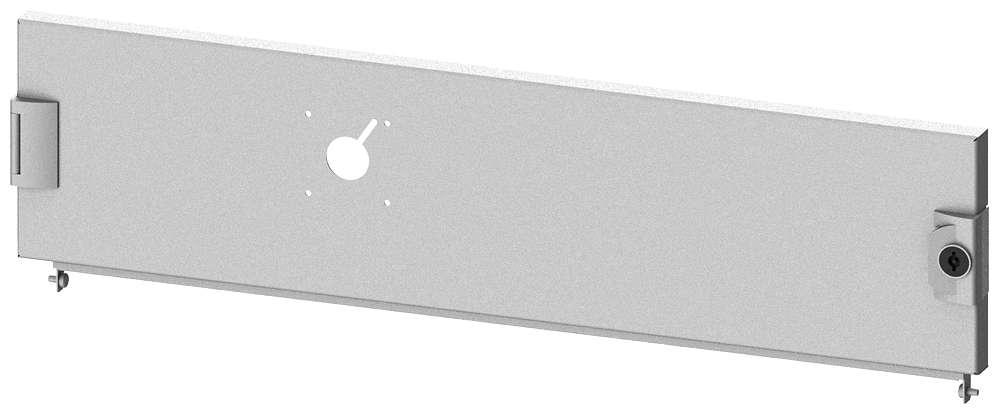

Siemens Compartment door 3VA20 (100 A), 3VA21 (160 A), 3VA22 (250 A) fixed-mounted, plug-in design, RCD: with, H: 200 mm W: 800 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
SIVACON S4 Modular DOOR 3VA20_21_2 HORIZONTAL FAST MOUNTING PLUGGABLE 200X800.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ2020-8BA23
- EAN / GTIN
- 4001869560144
- Sales unit
- pcs
- Dimensions
- 200×800 mm
- Product brand name
- SIVACON S4
- Product designation
- Compartment door
- Design of the product
- 3VA20 (100 A), 3VA21 (160A), 3VA22 (250 A)
- Design of the surface
- Powder-coated
- Design of the product EMC version
- No
- Protection class IP
- IP40
- Operating resource protection class
- 1
- Color
- light grey
- Product component — ventilation
- No
- Product component — viewing door
- No
- Product component — door for disconnector lock
- No
- Accessories included
- no
- Mechanical Design — height
- 200 mm
- Mechanical Design — width
- 800 mm
- Mechanical Design — depth
- 25 mm
- Opening direction of the door
- left / right
- Mounting position
- horizontal
- Ventilation cross section inlet can be used
- 0 cm²
- Ventilation cross section outlet can be used
- 0 cm²
- Mechanical Design — Net Weight
- 4.12 kg
- Material
- sheet-steel
- Width
- 800 mm
- Model
- Compartment door
- Height
- 200 mm
- Depth
- 25 mm
- EMC-version
- No
- Degree of protection (IP)
- IP40
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4001869560144
- SAP 1200044880
- Code 81868750
Product Documentation
