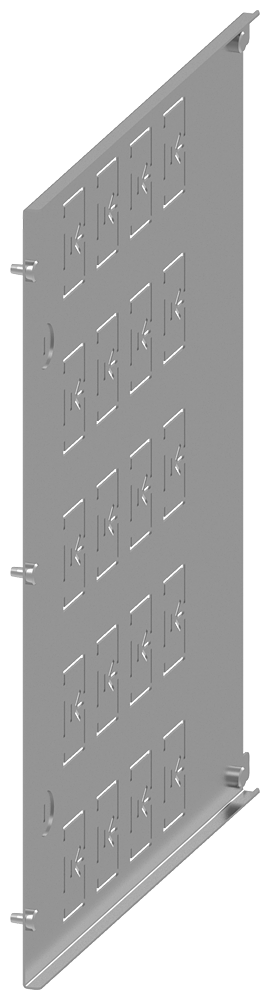

Siemens Separation lateral, H: 500 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 8PQ5000-2BA40 Form plate 3 vertical f the side h500.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ5000-2BA40
- EAN / GTIN
- 4042948172834
- Sales unit
- pcs
- Product brand name
- SIVACON S4
- Product designation
- separation on side
- Design of the surface
- zinc plated
- Design
- assembly kit
- Color
- miscellaneous
- Product component — cable entry
- No
- Product component — lock
- No
- Mechanical Design — height
- 500 mm
- Mechanical Design — width
- 2 mm
- Mechanical Design — depth
- 400 mm
- Installation width for cabinet installation
- 1.5 mm
- Installation depth for cabinet installation
- 400 mm
- Shape of inner subdivisions — shape 2a
- No
- Shape of inner subdivisions — shape 2b
- No
- Shape of inner subdivisions — shape 3a
- Yes
- Shape of inner subdivisions — shape 3b
- Yes
- Shape of inner subdivisions — shape 4a
- No
- Shape of inner subdivisions — shape 4b
- No
- Mounting position
- vertical
- Mechanical Design — Net Weight
- 1.98 kg
- Material
- sheet-steel
- Reference code according to IEC 81346-2
- UC
- Suitable for enclosure building width
- 1.5 mm
- Suitable for enclosure building depth
- 400 mm
- Width
- 2 mm
- Height
- 500 mm
- Surface finishing
- Galvanised
- With cable entry
- No
- With lock
- No
- Construction type
- Assembly kit
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- Yes
- For internal separation form 3b
- Yes
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4042948172834
- SAP 1000074193
- Code 8777941
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD5240-0RE20-0, 1250 A, 4-Pole, Front Operated Centre, without Rotary Handle
Siemens
Siemens SENTRON 3VA9153-0KB03 — Base terminal cover, 3-Pole, 3VA11
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AF16-0QA0
Siemens

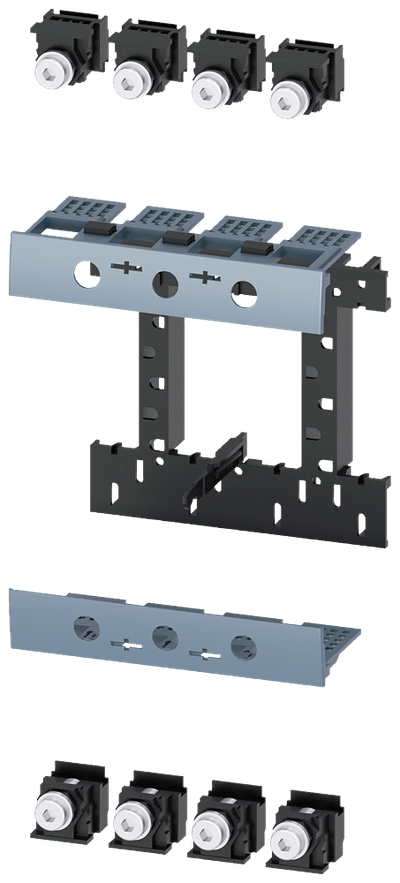

Siemens SENTRON 3VA9114-0KP10 — Plug-in conversion kit, 4-Pole, 3VA11
Siemens

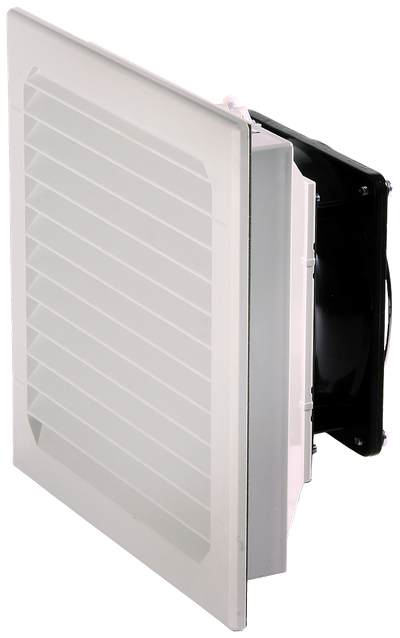

Siemens Filter Fan 230V,115M3/H, 20W
8MR6423-5LV30
Siemens

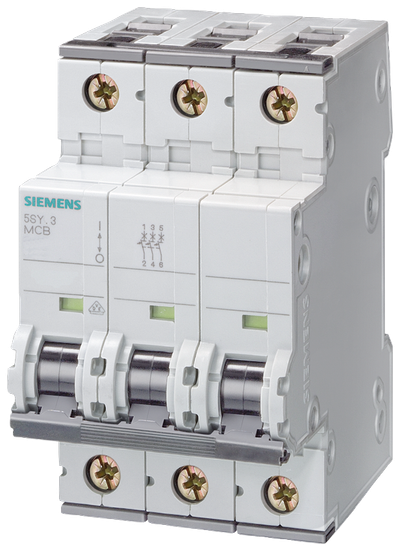

Siemens SENTRON 5SY7305-7 Miniature Circuit Breaker 3-Pole C0.5A 15KA
Siemens

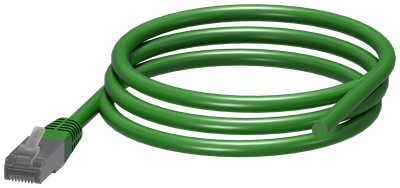

Siemens Communication Cable 2MTR
3RC7940-0TE20
Siemens

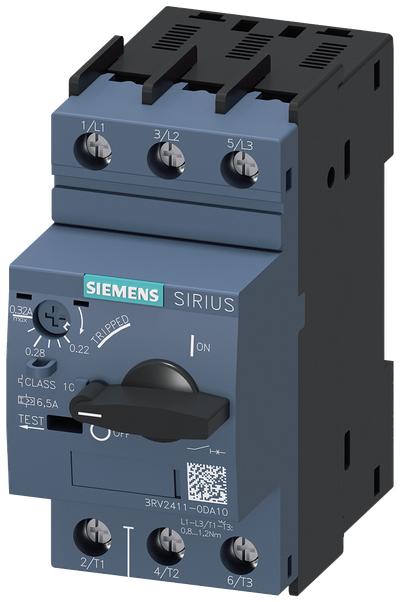

Siemens Motor protection circuit breaker 0 3RV2411-0DA10
