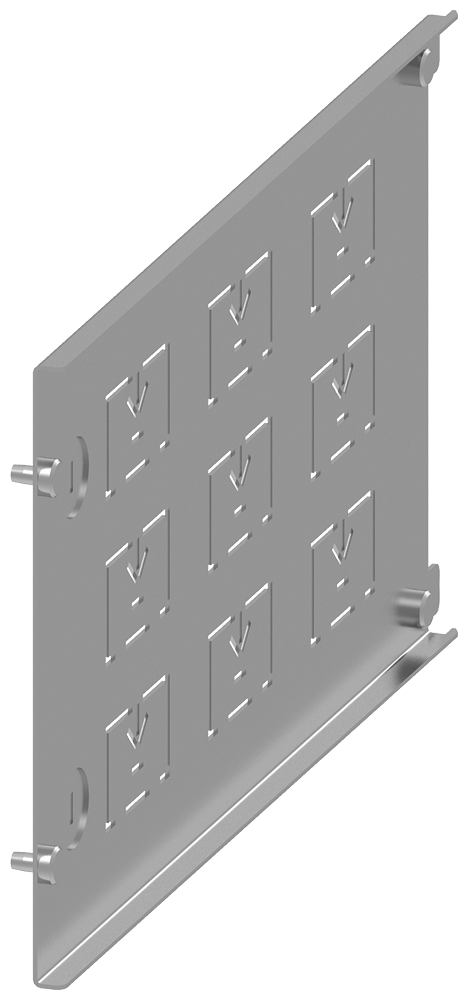

Siemens Separation lateral, rated current: 250 A, H: 250 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 8PQ5000-2BA32 Form plate 3 vertical f the side up to 250A h250.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ5000-2BA32
- EAN / GTIN
- 4042948172766
- Sales unit
- pcs
- Rated current
- 250 A
- Product brand name
- SIVACON S4
- Product designation
- separation on side
- Design of the surface
- zinc plated
- Design
- assembly kit
- Color
- miscellaneous
- Product component — cable entry
- No
- Product component — lock
- No
- Mechanical Design — height
- 250 mm
- Mechanical Design — width
- 2 mm
- Mechanical Design — depth
- 400 mm
- Installation width for cabinet installation
- 1.5 mm
- Installation depth for cabinet installation
- 400 mm
- Shape of inner subdivisions — shape 2a
- No
- Shape of inner subdivisions — shape 2b
- No
- Shape of inner subdivisions — shape 3a
- Yes
- Shape of inner subdivisions — shape 3b
- Yes
- Shape of inner subdivisions — shape 4a
- No
- Shape of inner subdivisions — shape 4b
- No
- Mounting position
- vertical
- Mechanical Design — Net Weight
- 0.849 kg
- Material
- sheet-steel
- Reference code according to IEC 81346-2
- UC
- Suitable for enclosure building width
- 1.5 mm
- Suitable for enclosure building depth
- 400 mm
- Width
- 2 mm
- Height
- 250 mm
- Surface finishing
- Galvanised
- With cable entry
- No
- With lock
- No
- Construction type
- Assembly kit
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- Yes
- For internal separation form 3b
- Yes
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4042948172766
- SAP 1000047213
- Code 8788681
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA24_4P_55KA_ETU860,LSIG,IN=500A,IR=200A-500A,ISD=0,6-10XIN,II=1,5-14XIN,IG=0,2-1XIN,,B
3VA2450-5KQ42-0AA0
Siemens
Siemens SENTRON 3VA9111-0WK30 — Insulation backplate, wide, 3-Pole, 3VA10 / 3VA11
Siemens
Siemens Sivacon S4 Cover 3VA10_11 VR 3 POLE FAST Mounting Pluggable 350X800
8PQ2035-8BA16
Siemens
Siemens Alpha KIT 1X3VA12, 600X250, RCD
8GK4732-4KK10
Siemens
Siemens Compartment door IP40, H: 450 mm W: 1000 mm
8PQ2045-1BA01
Siemens
Siemens MCCB 3VA11 25kA 4-Pole TM210 Fixed Thermal 63A Bolt-Connection
3VA1163-3GD42-0AA0
Siemens

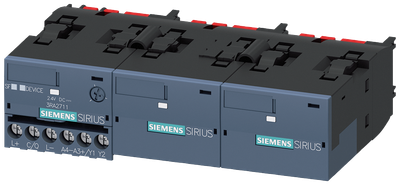

Siemens Function Module Y/D Io
3RA2711-1CA00
Siemens

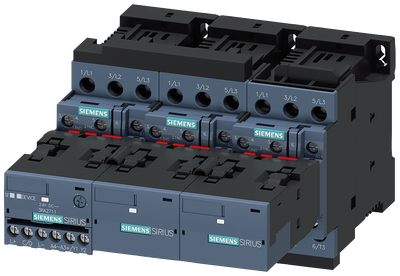

Siemens Star-Delta Contactor Assembly IO-Link 22kW 24V DC, S0,3NO+3NC
