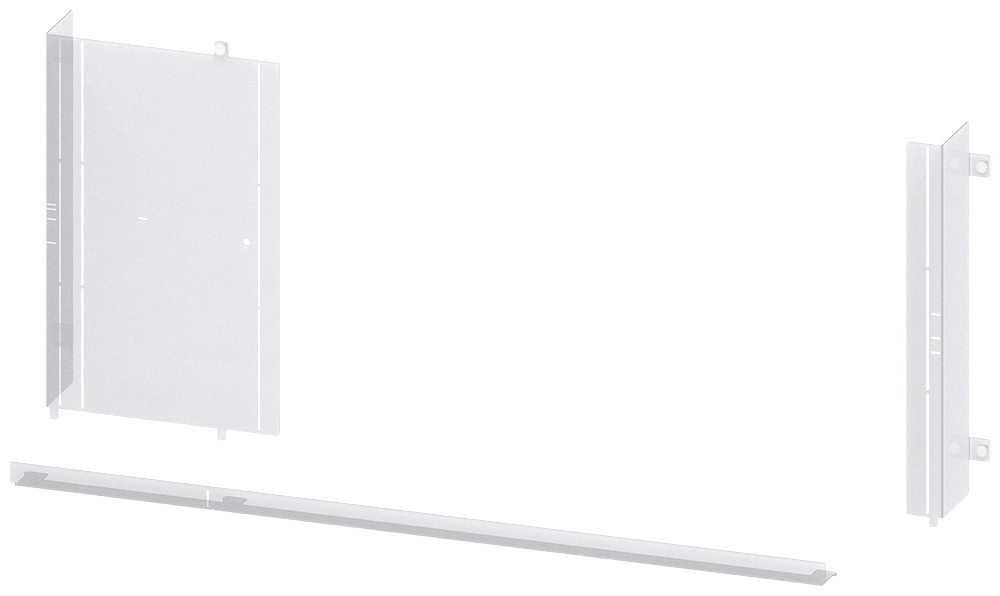

Siemens Separation 3WA size 3, 3 or 4-Pole, fixed-mounted, withdrawable H: 550 mm W: 1000 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 8PQ5000-1BA74 Form plate 3 f 3WL III 3/4-pole fast, withdrawable h550/b1000.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ5000-1BA74
- EAN / GTIN
- 4042948171936
- Sales unit
- pcs
- Number of poles
- 4
- Product brand name
- SIVACON S4
- Product designation
- Separation 3WA
- Design of the surface
- zinc plated
- Design
- assembly kit
- Suitability for use
- for 3WA air circuit breakers
- Color
- miscellaneous
- Product component — cable entry
- No
- Product component — lock
- No
- Mechanical Design — height
- 550 mm
- Mechanical Design — width
- 1 000 mm
- Shape of inner subdivisions — shape 2a
- No
- Shape of inner subdivisions — shape 2b
- No
- Shape of inner subdivisions — shape 3a
- No
- Shape of inner subdivisions — shape 3b
- No
- Shape of inner subdivisions — shape 4a
- No
- Shape of inner subdivisions — shape 4b
- No
- Mechanical Design — Net Weight
- 2.555 kg
- Material
- sheet-steel
- Reference code according to IEC 81346-2
- UC
- Width
- 1000 mm
- Height
- 550 mm
- Depth
- 1000 mm
- EMC-version
- No
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4042948171936
- SAP 1000037669
- Code 8779118
Product Documentation
More from Siemens
Siemens
Siemens RC Elem LZS:PTMU0524
Siemens
Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 12 A, 5.5 kW / 400 V, 3-Pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1 NO, with voltage tap for 3RA27
3RA2324-8XE30-1BB4
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE32-0AB0
Siemens

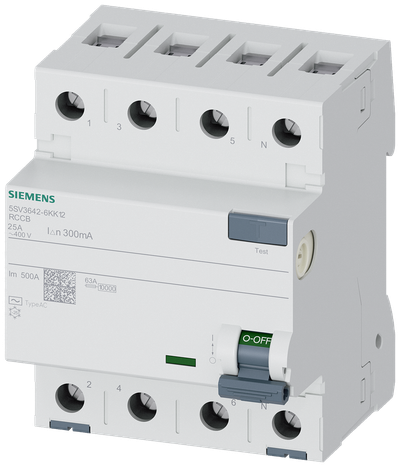

Siemens Residual current circuit breaker A 25/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES 5SV36426KK12
Siemens
Siemens 3NA6252-6
Siemens

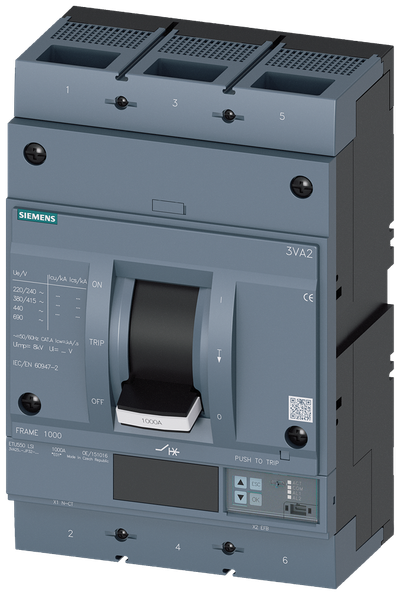

Siemens MCCB_3VA25_3P_55KA_ETU550,LI,IN=1000A,IR=400A-1000A,Ii=10XIN,bolt
3VA2563-5JP32-0AA0
Siemens

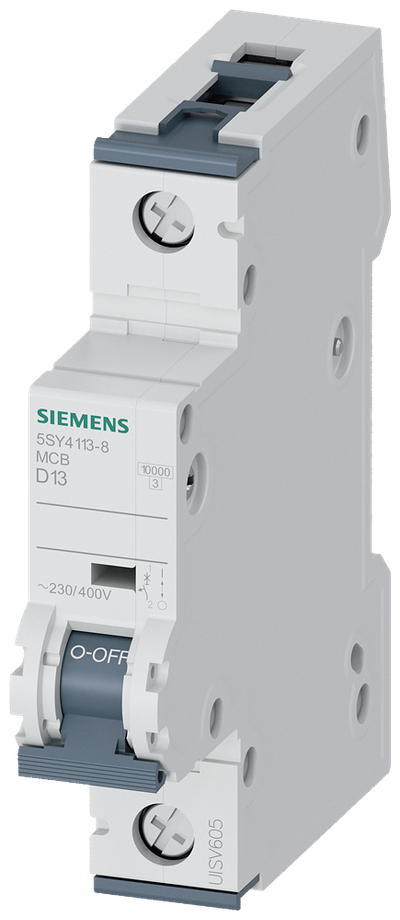

Siemens SENTRON 5SY4113-8 Miniature Circuit Breaker 1-Pole D13A 10KA
Siemens

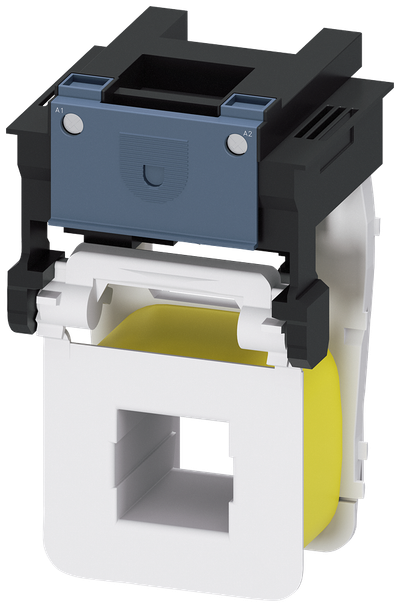

Siemens Coil for size 3RT1965-5AM31
