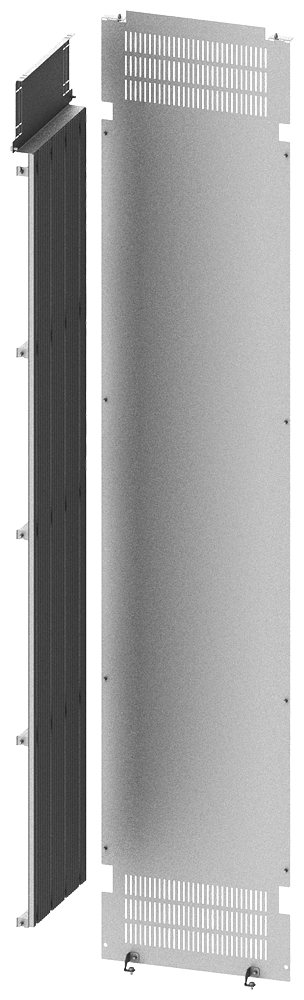

Siemens Separation vertical busbar main busbar: top W: 400 mm D: 800 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 8PQ4000-0BA01 Vertical fordelingsskinner, with main busbar above, separation 2b.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ4000-0BA01
- EAN / GTIN
- 4042948163313
- Sales unit
- pcs
- Product brand name
- SIVACON S4
- Product designation
- subdivision field distribution bar
- Design of the surface
- other
- Design
- assembly kit
- Suitability for use
- for main busbar at top/bottom
- RAL color number
- 9 010
- Color
- white
- Product component — cable entry
- Yes
- Product component — lock
- No
- Mechanical Design — height
- 1 600 mm
- Mechanical Design — width
- 400 mm
- Mechanical Design — depth
- 800 mm
- Installation width for cabinet installation
- 400 mm
- Installation depth for cabinet installation
- 800 mm
- Shape of inner subdivisions — shape 2a
- Yes
- Shape of inner subdivisions — shape 2b
- Yes
- Shape of inner subdivisions — shape 3a
- No
- Shape of inner subdivisions — shape 3b
- No
- Shape of inner subdivisions — shape 4a
- No
- Shape of inner subdivisions — shape 4b
- No
- Mounting position
- vertical
- Mechanical Design — Net Weight
- 11.89 kg
- Material
- plastic
- Reference code according to IEC 81346-2
- UC
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 800 mm
- Width
- 400 mm
- Height
- 1600 mm
- Colour
- White
- RAL-number
- 9010
- With cable entry
- Yes
- With lock
- No
- Construction type
- Assembly kit
- For internal separation form 2a
- Yes
- For internal separation form 2b
- Yes
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4042948163313
- SAP 1000005895
- Code 833338
