Siemens Rear panel IP55, W: 800 mm
Pricing
Request a quote
We reply within 24 hours
Overview

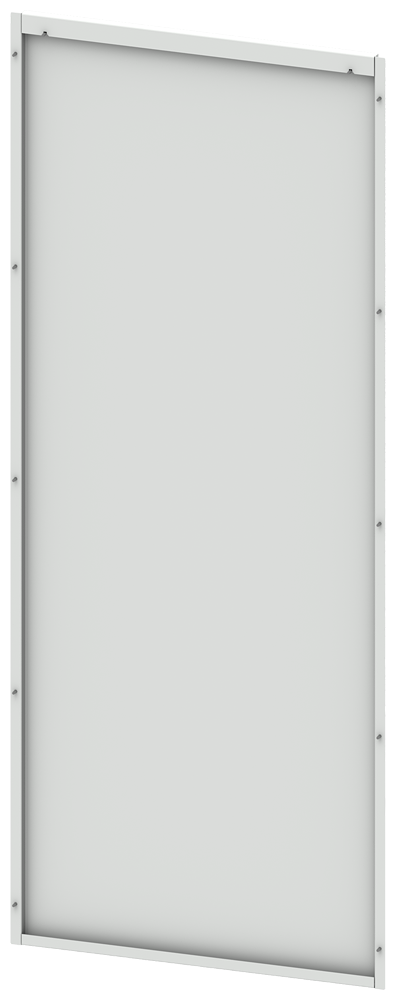

Siemens Rear panel IP55, W: 800 mm (part number 8PQ2420-8BA01) is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Product brand name: SIVACON S4; Product designation: Rear panel; Design of the surface: Powder-coated; Protection class IP: IP55; RAL color number: 7 035.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ2420-8BA01
- EAN / GTIN
- 4042948160848
- Sales unit
- pcs
- Product brand name
- SIVACON S4
- Product designation
- Rear panel
- Design of the surface
- Powder-coated
- Design of the product EMC version
- No
- Protection class IP
- IP55
- RAL color number
- 7 035
- RAL color number (similar)
- 7 035
- Color
- light grey
- Product component — cable entry
- No
- Product component — lock
- No
- Mechanical Design — height
- 2 000 mm
- Mechanical Design — width
- 800 mm
- Mechanical Design — depth
- 25 mm
- Ventilation cross section inlet can be used
- 0 cm²
- Ventilation cross section outlet can be used
- 0 cm²
- Mechanical Design — Net Weight
- 22.5 kg
- Material
- sheet-steel
- Suitable as side panel
- No
- Suitable as rear panel
- Yes
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building depth
- 25 mm
- Width
- 800 mm
- Height
- 2000 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- With cable entry
- No
- With lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4042948160848
- SAP 1000030653
- Code 8732666
