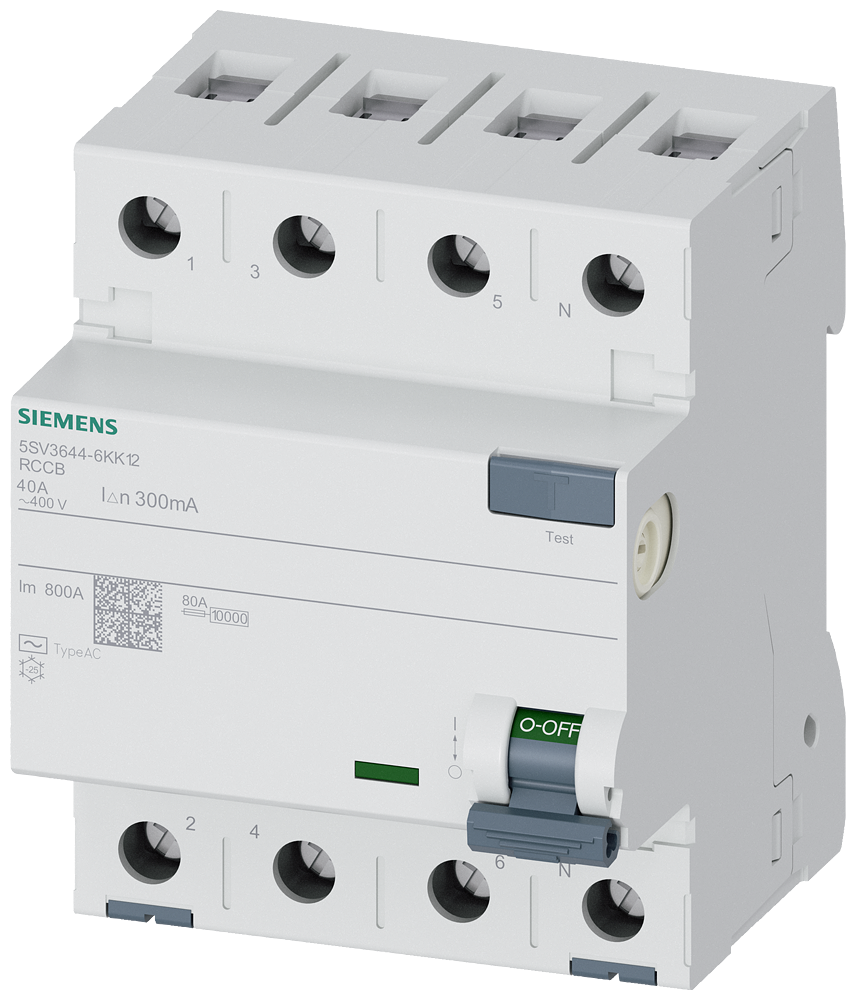

Siemens Residual current circuit breaker A 40/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES 5SV3644-6KK12
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3644-6KK12 Residual current circuit breaker A 40/4, tightening torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2 SIGRES.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3644-6KK12
- EAN / GTIN
- 4001869430645
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 40 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 1.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430645
- SAP 1000711015
- Code 8226129
Product Documentation
More from Siemens
Siemens
Siemens Current transformer 400/1A, 5VA K1,0 4NC5225-0CE21
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1950-0DX80-0AA0
Siemens
Siemens S10 Vacuum contactor, 110KW/400 3RT1264-6NP36
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB71-0RK0
Siemens
Siemens SIRIUS Metal Illuminated Pushbutton, Yellow, 1 NO, 24 V AC/DC
3SU1152-0AB30-3BA0
Siemens

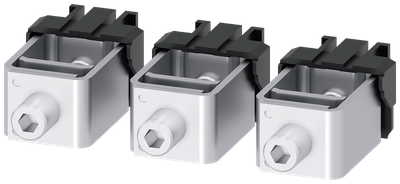

Siemens SENTRON 3VA9253-0JA12 — Copper (Cu) box terminal, 50–185 mm², 3VA12
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB71-0EF0
Siemens

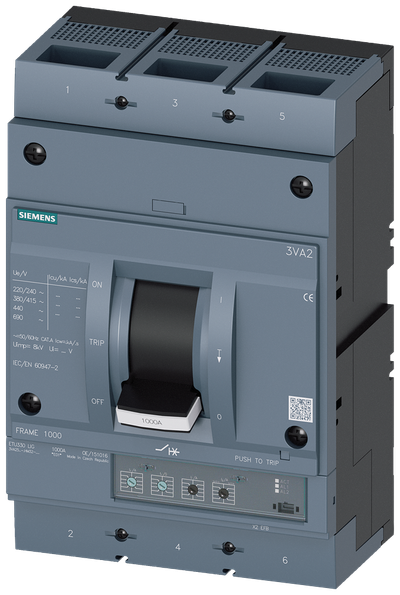

Siemens MCCB_3VA25_3P_85KA_ETU330,LIG PROTECTION, IN=800A, IR=320A-800A, II=1,5-10XIN,IG=0,2-1XIN, TG=0,1/0,3MS
