Siemens Residual current circuit breaker A 40/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3314-6KK12 Residual current circuit breaker A 40/2, tightening torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2 SIGRES.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3314-6KK12
- EAN / GTIN
- 4001869430577
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 40 A
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 2
- Rated fault current
- 30 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 1.7 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430577
- SAP 1000711005
- Code 8674307
Product Documentation
More from Siemens
Siemens
Siemens 3VA13, 3P, 320A, TM120M, with Bolt Connection, 55KA, II=2240-4480A, short-circuit protection/starter protection
3VA1332-5MH32-0AA0
Siemens

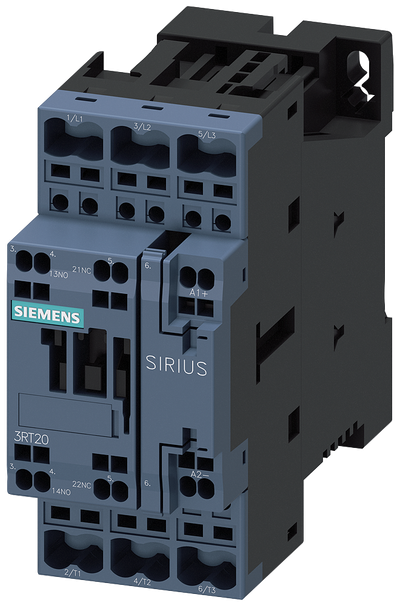

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2028-2BB40
Siemens

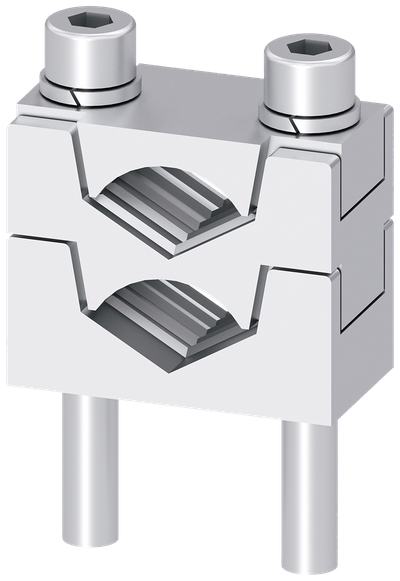

Siemens Prismeklemme NH1,al/cu,2X150-185
3NP19631BB20
Siemens

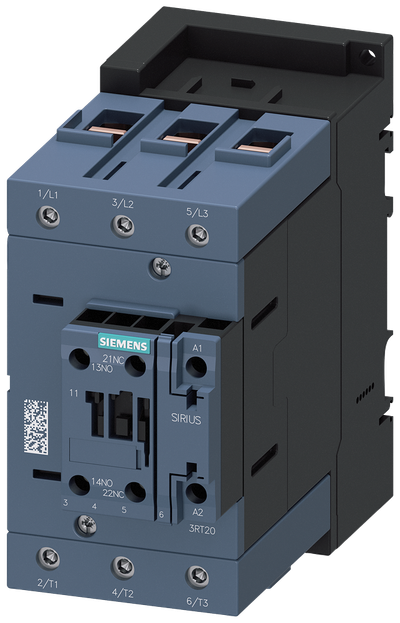

Siemens Contactor, AC3: 55KW/400V, 1NO+1NC, 110VAC 50Hz, 3-Pole, 3NO 3RT2047-1AF00
Siemens

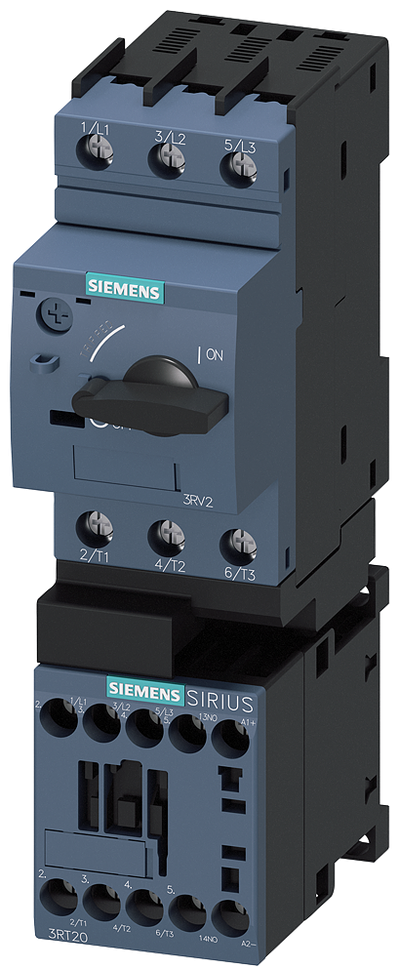

Siemens SIRIUS Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 0.35...0.50 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
3RA2110-0FA15-1BB4
Siemens
Siemens Separation main busbar, mounting position: top front or rear, W: 600 mm D: 400 mm
8PQ3000-0BA56
Siemens
Siemens Contact Block 4-Pole 1NC
3RH2911-1HA01
Siemens
Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AB71-0DT0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SV3314-6KK12?
- 5SV3314-6KK12 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SV3314-6KK12.
- What is the HS code for 5SV3314-6KK12?
- The customs tariff (HS) code for 5SV3314-6KK12 is 8536.90.
- Who manufactures 5SV3314-6KK12?
- 5SV3314-6KK12 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 5SV3314-6KK12?
- Yes — the 5SV3314-6KK12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SV3314-6KK12?
- The minimum order quantity is 1.
- Is 5SV3314-6KK12 available?
- Yes — 5SV3314-6KK12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
