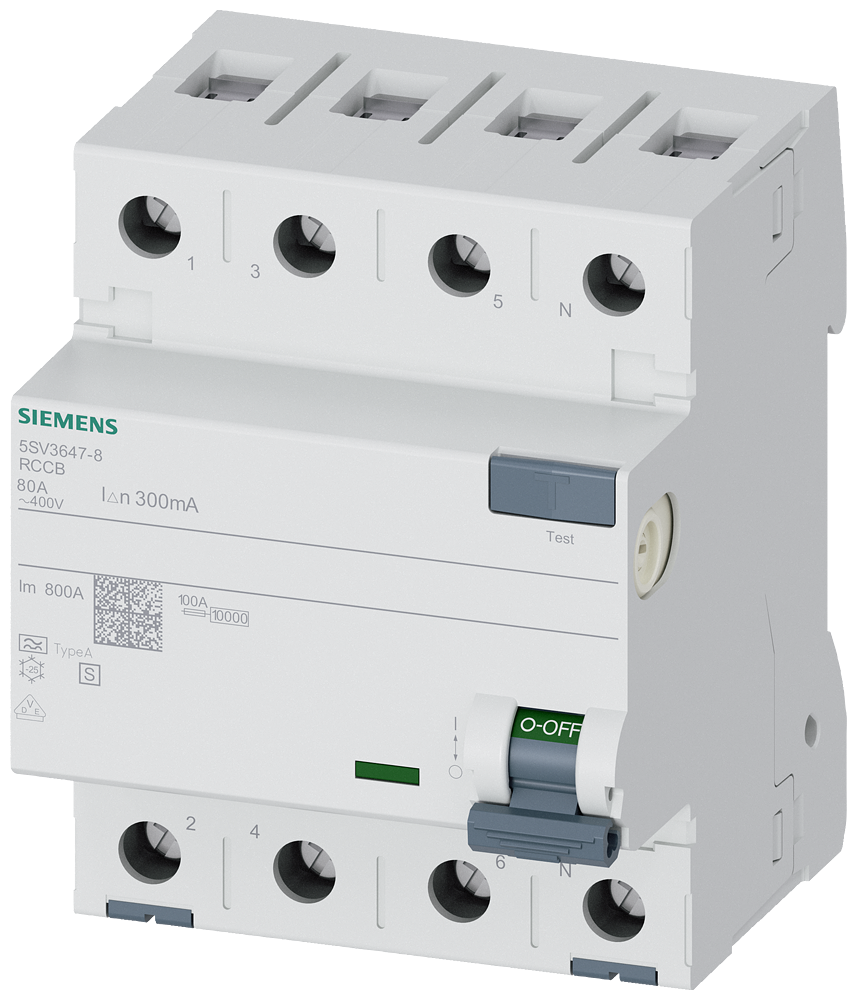

Siemens Residual current circuit breaker A 80/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, selective
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV36478 Residual current circuit breaker A 80/4, tightening torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2, selective.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV36478
- EAN / GTIN
- 4001869430775
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 5 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 4.1 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430775
- SAP 1000710994
- Code 8433073
Product Documentation
More from Siemens
Siemens
Siemens S12 contactor, 250KW/400V/AC-3 3RT1076-6LA06
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD3834-0PE40-0, 250 A, 3-Pole, without Rotary Handle
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 650 mm, W: 300 mm, D: 210 mm, RAL 9016
8GK1132-2KA12
Siemens

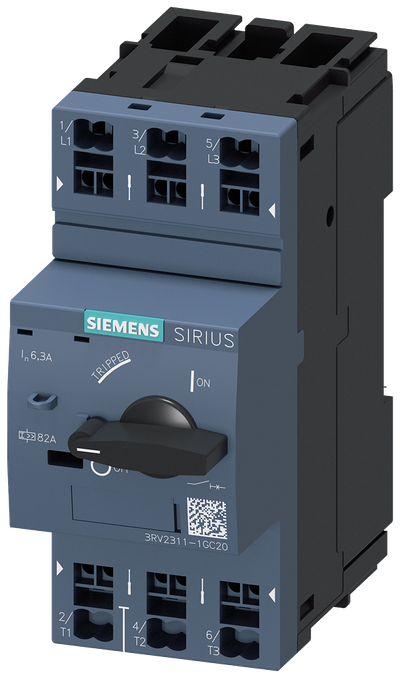

Siemens Circuit breaker 6
3RV2311-1GC20
Siemens

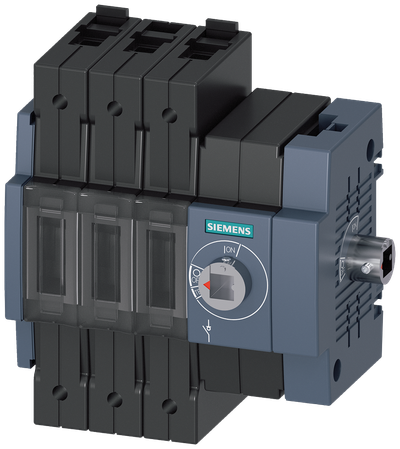

Siemens Load-break switch 16A,size 1,frame terminal for cable,3-Pole,operation side right-hand,box terminal for Cu cable
3KD1634-2ME40-0
Siemens

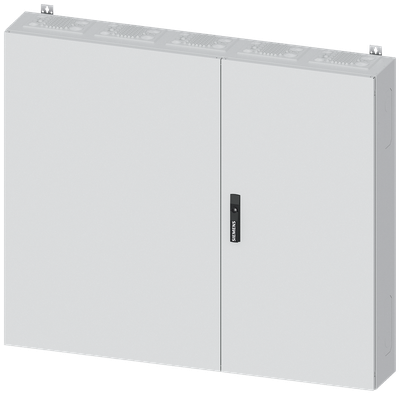

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 1100 mm, W: 1300 mm, D: 210 mm, RAL 9016
8GK1133-5KA52
Siemens

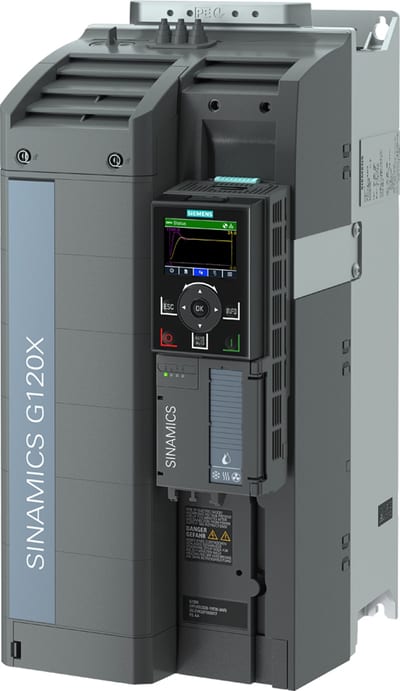

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE30-0UP0
