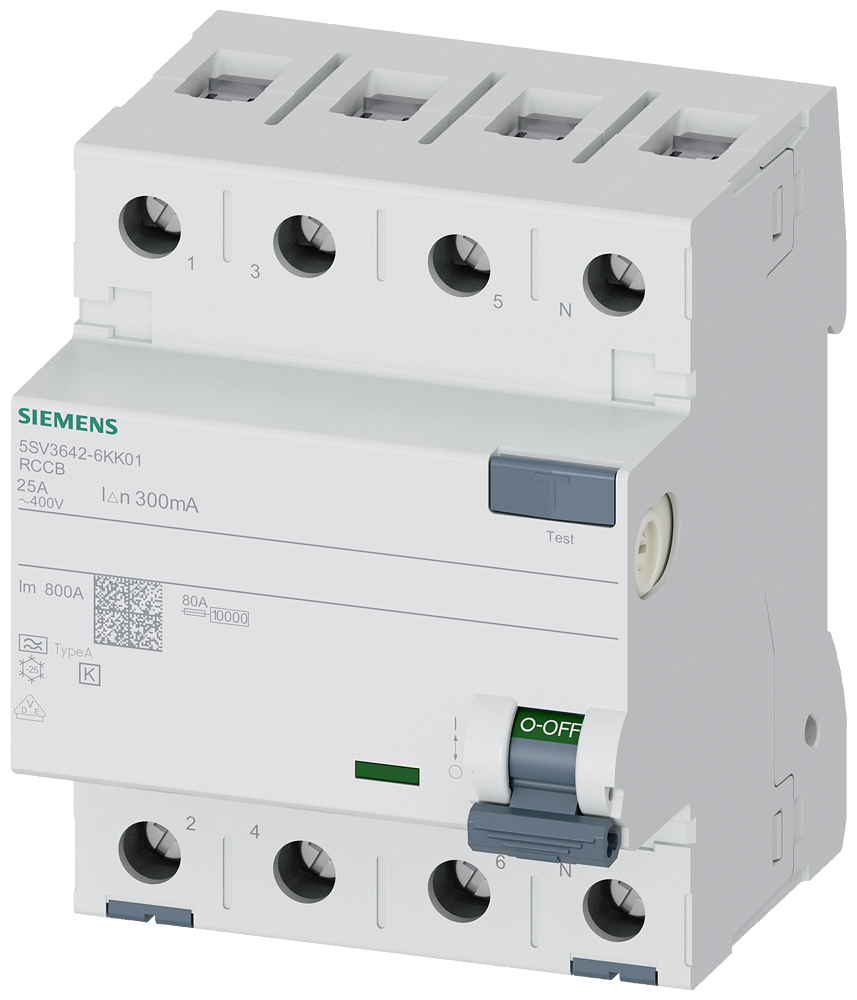

Siemens Residual current circuit breaker A 25/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, Short-Time Delayed K 5SV36426KK01
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV36426KK01 Residual current circuit breaker A 25/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2, short-time delayed K.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV36426KK01
- EAN / GTIN
- 4001869430911
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 25 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 3 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 0.8 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430911
- SAP 1000710953
- Code 8674256
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Contactor assembly for star-delta (wye-delta) start, I/O-Link AC-3, 22 kW/400 V, 24 V DC 3-Pole, size S0 Spring-type terminals electrical and mechanical interlock 3 NO + 3 NC integrated
3RA2426-8XE32-2BB4
Siemens
Siemens 3SU1102-0AB50-1BA0 SIRIUS ACT 22 mm Illuminated Pushbutton Blue 24 V
Siemens
Siemens 3VA11, 55KA, 3-Pole, TM240, IN=25A,IR=17,5A 3VA1125-5EF32-0AA0
Siemens
Siemens SENTRON 3VA9114-0KP00 — Plug-in base, 4-Pole, 3VA11
Siemens
Siemens SENTRON 3VA9113-0KP10 — Plug-in conversion kit, 3-Pole, 3VA11
Siemens
Siemens SENTRON 3VA9504-0JG32 — Cu/Al box terminal, 4-Pole, 3VA25
Siemens
Siemens 5SU1324-7FA20
Siemens
Siemens Nullvoltagestrigger AC 230V/50HZ 240V/60HZ spring terminals
3RV2922-2CP0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SV36426KK01?
- 5SV36426KK01 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SV36426KK01.
- What is the HS code for 5SV36426KK01?
- The customs tariff (HS) code for 5SV36426KK01 is 8536.90.
- Who manufactures 5SV36426KK01?
- 5SV36426KK01 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 5SV36426KK01?
- Yes — the 5SV36426KK01 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SV36426KK01?
- The minimum order quantity is 1.
- Is 5SV36426KK01 available?
- Yes — 5SV36426KK01 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
