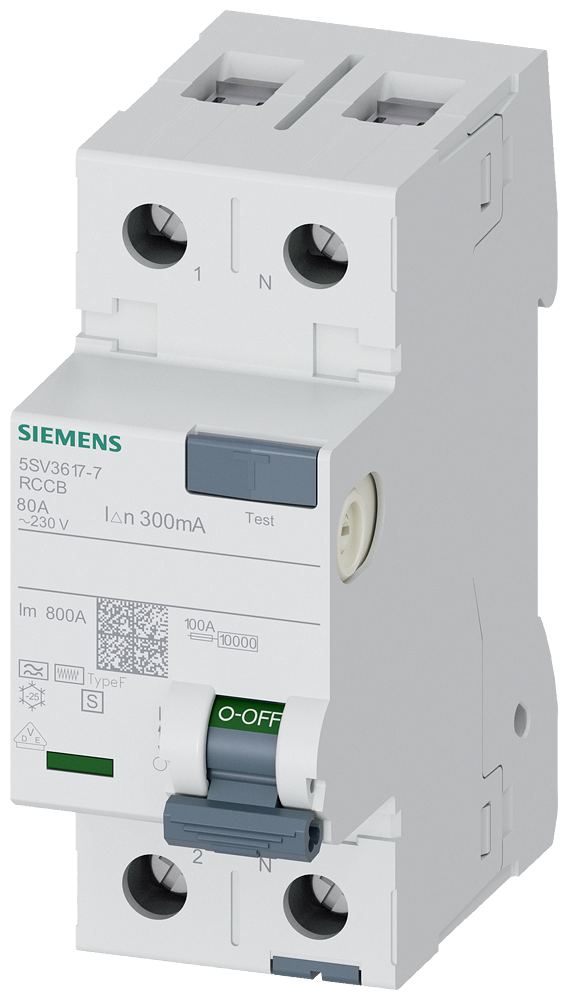

Siemens Residual current circuit breaker F 80/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, selective
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV36177 Residual current circuit breaker F 80/2, tightening torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2, selective.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV36177
- EAN / GTIN
- 4001869484549
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 2
- Rated fault current
- 300 A
- Leakage current type
- F
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 5 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 36 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869484549
- SAP 1000710930
- Code 8674220
