Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 300MA,10KA, 1+N-Pole B 20A
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SU1654-6KK20 Residual current circuit breaker with overcurrent For Tn, Type A, D=70 mm Ifn 300ma,10kA, 1+N-Pole B 20A.
Technical Specifications
- Manufacturer part number (MPN)
- 5SU1654-6KK20
- EAN / GTIN
- 4001869308173
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 20 A
- Breaking capacity
- 10 kA
- Power loss
- 3.7 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 264 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 10 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Anti-nuisance tripping version
- Yes
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 0.75–35 mm²
- Connectable conductor cross section multi-wired
- 0.75–35 mm²
- Flush-mounted installation
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869308173
- SAP 1000029571
- Code 8231563
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Compact Pushbutton 22 mm Red Plastic Extended
3SU1200-0EB20-0AA0
Siemens
Siemens Damping Module for 3RT Main Direct-On-Line Contactor Size S00-S3
3RT1966-1PV3
Siemens
Siemens PROFILSK
5ST1141
Siemens
Siemens Accessory FUSE STRIP, CAN BE Plugged IN,NH1 Front Plate FOR 3NJ6213-1, 3NJ6213-3, 3NJ6214-1
3NJ6933-4BB00
Siemens

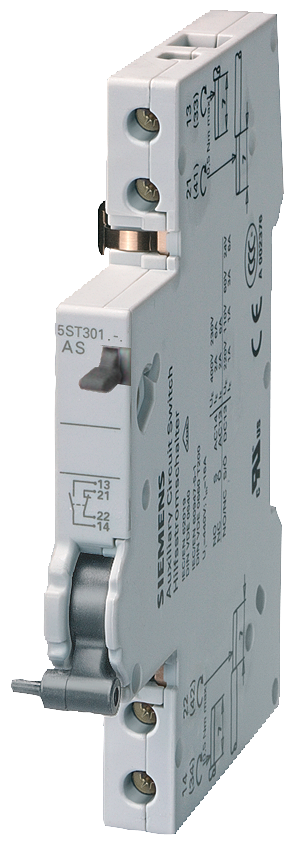

Siemens Auxiliary contact with test button 2NO FOR MCB 5SL, 5SY, 5SP, ON-OFF-SW
5ST3011-2
Siemens

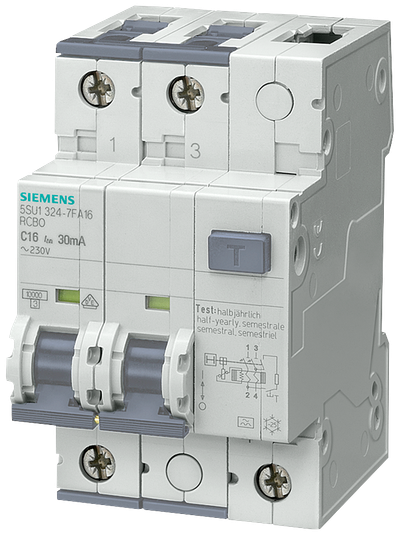

Siemens 5SU1324-7FA25
Siemens

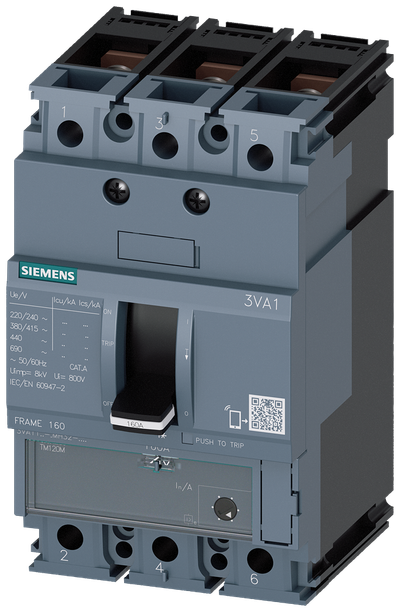

Siemens Circuit breaker 3VA1, starter protection with adjustable Ii=7 for 16 X IN, 63A, 3P, TM120M, 55KA, BOLT
3VA1163-5MH32-0AA0
Siemens

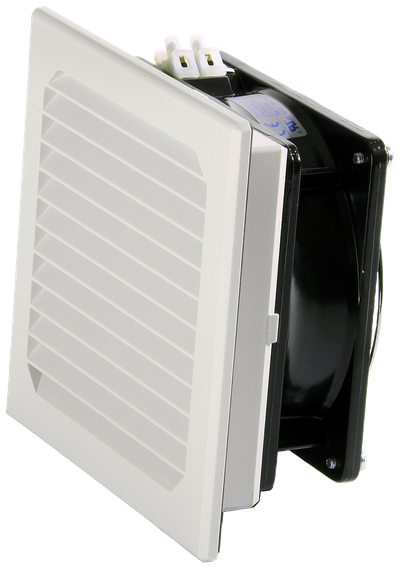

Siemens Filter Fan 230V,63M3/H, 20W
