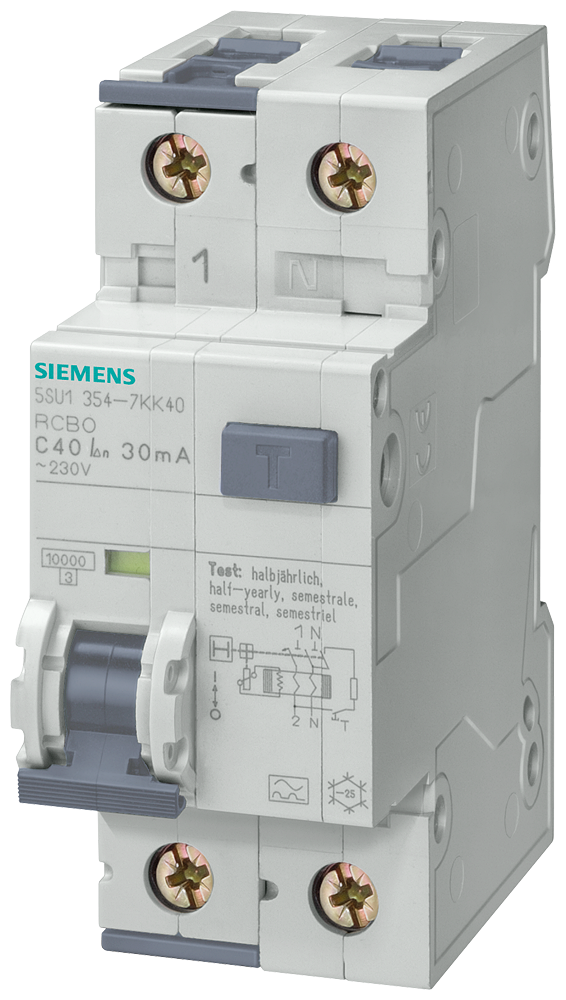

Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 30MA,10KA, 1+N-Pole C 40A
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SU1354-7KK40 Residual current circuit breaker with overcurrent For Tn, Type A, D=70 mm Ifn 30ma,10kA, 1+N-Pole C 40A.
Technical Specifications
- Manufacturer part number (MPN)
- 5SU1354-7KK40
- EAN / GTIN
- 4001869307886
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 40 A
- Breaking capacity
- 10 kA
- Power loss
- 7.8 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 264 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 10 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Flush-mounted installation
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869307886
- SAP 1000055919
- Code 8540043
Product Documentation
More from Siemens
Siemens
Siemens JUMPER LINK BLACK, 150mm, 16 mm²
5ST3792-1
Siemens
Siemens ALPHA 630, floor-standing cabinet, IP43, safety class 1, H:1950 mm, W:1300 mm, D:210 mm,RAL7035, flange roof
8GK1322-8KA52
Siemens
Siemens SIRIUS Contactor, S2, 40A 1NO+1NC, 24V AC/DC, 3-Pole 3RT2035-1NB30
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC38-0UP0
Siemens
Siemens SIRIUS Contactor, S2, 50A 1NO+1NC, 24V AC/DC, 3-Pole 3RT2036-1NB30
Siemens
Siemens 3RV1913-1DA00 Enclosure with Diaphragm, Size S00
Siemens
Siemens Alpha 630 Din, Floor Cabinet Including Plinth Delivery Form Flat Pack, Colour Ral 7035, IP43 8GK1302-8KK42
Siemens
Siemens SIRIUS ACT Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, 10:30H/13:30H, with holder, 1 NO, 1 NC, Spring-type terminal
3SU1100-2BF60-3MA0
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SU1354-7KK40?
- 5SU1354-7KK40 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SU1354-7KK40.
- What is the HS code for 5SU1354-7KK40?
- The customs tariff (HS) code for 5SU1354-7KK40 is 8536.90.
- Who manufactures 5SU1354-7KK40?
- 5SU1354-7KK40 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 5SU1354-7KK40?
- Yes — the 5SU1354-7KK40 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SU1354-7KK40?
- The minimum order quantity is 1.
- Is 5SU1354-7KK40 available?
- Yes — 5SU1354-7KK40 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
