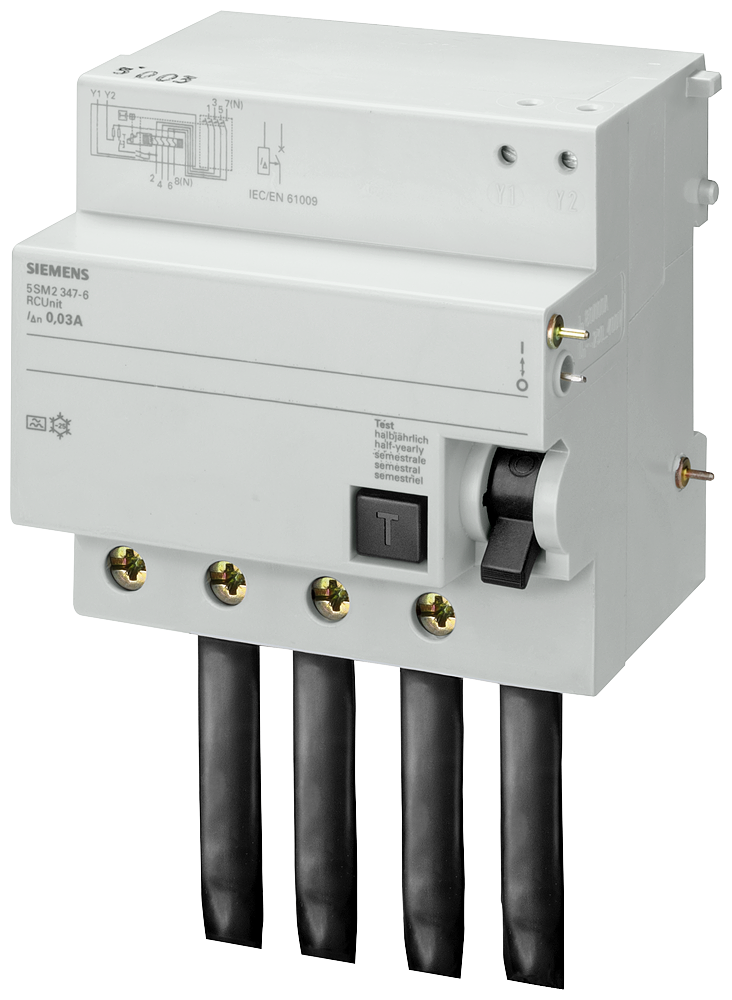

Siemens 5SM2347-0
Pricing
Request a quote
We reply within 24 hours
Overview
Siemens 5SM2347-0 is listed under Electrical Components / RCDs & RCBOs. Sales unit: pcs; Nominal voltage: 400 V; Nominal current: 100 A; Rated fault current adjustable: No; Rated fault current: 30 A; Delay adjustable: No.
Technical Specifications
- Manufacturer part number (MPN)
- 5SM2347-0
- EAN / GTIN
- 4001869059198
- Sales unit
- pcs
- Nominal voltage
- 400 V
- Nominal current
- 100 A
- Rated fault current adjustable
- No
- Rated fault current
- 30 A
- Delay adjustable
- No
- Number of poles
- 4
- Leakage current type
- AC
- Surge current capacity
- 4000 kA
- Frequency
- 50 Hz
- Rated insulation voltage Ui
- 460 V
- Rated impulse withstand voltage Uimp
- 1 kV
- Connectable conductor cross section solid-core
- 6–50 mm²
- Connectable conductor cross section multi-wired
- 6–50 mm²
- Anti-nuisance tripping version
- Yes
- With interlocking device
- No
- Degree of protection (IP)
- IP20
- Pollution degree
- 2
- Ambient temperature during operating
- -25–45 °C
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4001869059198
- SAP 1000043696
- Code 8781195
Product Documentation
