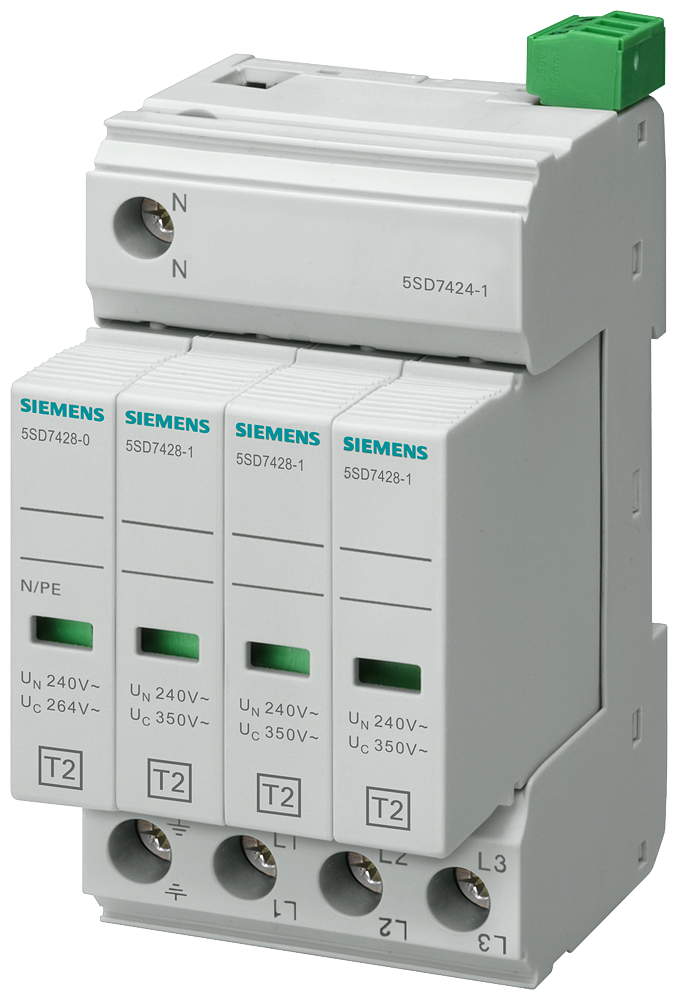

Siemens 5SD7424-1
Pricing
Request a quote
We reply within 24 hours
Overview
Siemens 5SD7424-1 is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; Nominal voltage AC: 230 V; Max. continuous voltage AC: 350 V; Voltage protection level L-N: 1.4 kV; Voltage protection level N-PE: 1.5 kV; Mounting method: DIN rail (top hat rail) 35 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SD7424-1
- EAN / GTIN
- 4001869340340
- Sales unit
- pcs
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 40 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level L-N
- 1.4 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 63 A
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- Signalling at the device
- Optical
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4001869340340
- SAP 1000014788
- Code 8485106
Product Documentation
More from Siemens
Siemens
Siemens 8WA7553
Siemens
Siemens SENTRON 3VA91140KB01 — Base terminal cover, wide, 4-Pole, 3VA11
Siemens
Siemens Circuit breaker 3VA1, starter protection with adjustable Ii=7 for 16 X IN, 32A, 3P, TM120M, 55KA, BOLT
3VA1132-5MH32-0AA0
Siemens
Siemens MCCB_3VA23_4P_55KA_ETU350,LSI,IN=250A,IR=100A-250A,ISD=1,5-10XIR,II=12XIN,,B
3VA2325-5HN42-0AA0
Siemens
Siemens N-Lederkontakt Main switch front mounting for 125 A (accessory for switch 3LD2)
3LD9250-0BA
Siemens
Siemens Motor protection circuit breaker S00, for CLASS10, automatic release 3RV1011-0EA10
Siemens
Siemens SENTRON 5SY4406-7 Miniature Circuit Breaker 4-Pole C6A 10KA
Siemens
Siemens 3RU2146-4KB1 Thermal Overload Relay S3 57-75 A for Motor Protection
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5SD7424-1?
- 5SD7424-1 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 5SD7424-1.
- What is the HS code for 5SD7424-1?
- The customs tariff (HS) code for 5SD7424-1 is 8536.30.
- Who manufactures 5SD7424-1?
- 5SD7424-1 is a Siemens product in the Switchgear & Protection range.
- Is a datasheet available for 5SD7424-1?
- Yes — the 5SD7424-1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5SD7424-1?
- The minimum order quantity is 1.
- Is 5SD7424-1 available?
- Yes — 5SD7424-1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
