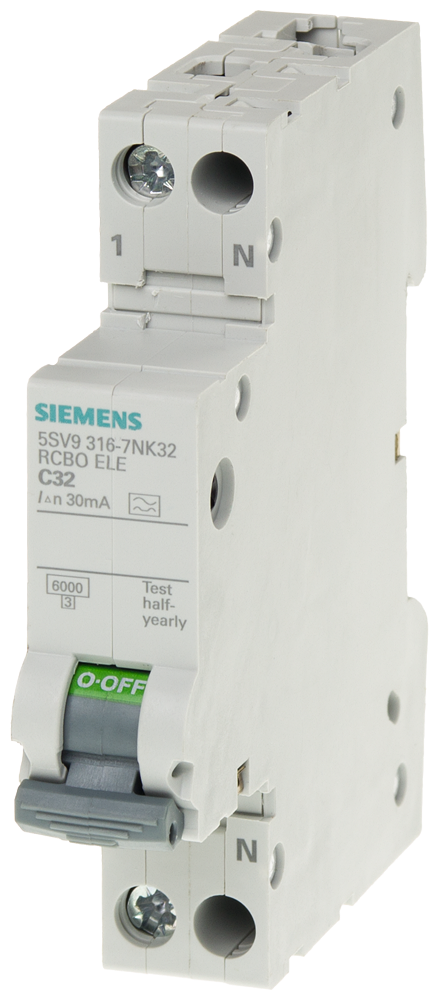

Siemens Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30MA B32, el
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV9316-6NK32 Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30mA B32, el.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV9316-6NK32
- EAN / GTIN
- 4001869573441
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 6 kA
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 250 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 32 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- B
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 1
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869573441
- SAP 1200416107
- Code 82450205
Product Documentation
