Siemens Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30MA B10, el
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV9316-6NK10 Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30mA B10, el.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV9316-6NK10
- EAN / GTIN
- 4001869573403
- HS code
- 8536.90
- Sales unit
- pcs
- Breaking capacity
- 6 kA
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 250 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 10 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- B
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 1
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869573403
- SAP 1200416101
- Code 82450122
Product Documentation
More from Siemens
Siemens
Siemens 5SM2325-6 RC Unit for 5SY Miniature Circuit Breaker — 2-Pole, Type A, in 63 A, 30 mA, 230 V AC
Siemens
Siemens S12 contactor, 200KW/400V/AC-3 3RT1075-6AB36
Siemens
Siemens Residual current circuit breaker A 63/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, Short-Time Delayed K 5SV3346-6KK01
Siemens
Siemens Solid state contactor 3,8A 110-230V AC
3RF3403-1BD24
Siemens
Siemens Residual current circuit breaker A 63/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES 5SV3346-6KK12
Siemens
Siemens SENTRON 5SY4306-6 Miniature Circuit Breaker 3-Pole B6A 10KA
Siemens
Siemens SENTRON 5SP4380-7 Miniature Circuit Breaker 3-Pole C80A 10KA
Siemens

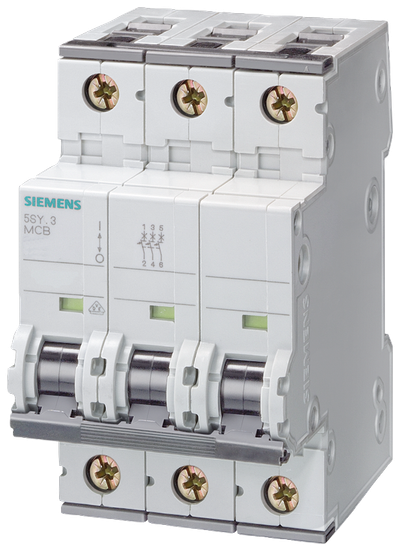

Siemens SENTRON 5SY7325-6 Miniature Circuit Breaker 3-Pole B25A 15KA
