Siemens WEEKLY TIMER 1-Channel 2TE 230V/16A TOP
Pricing
Request a quote
We reply within 24 hours
Product Description

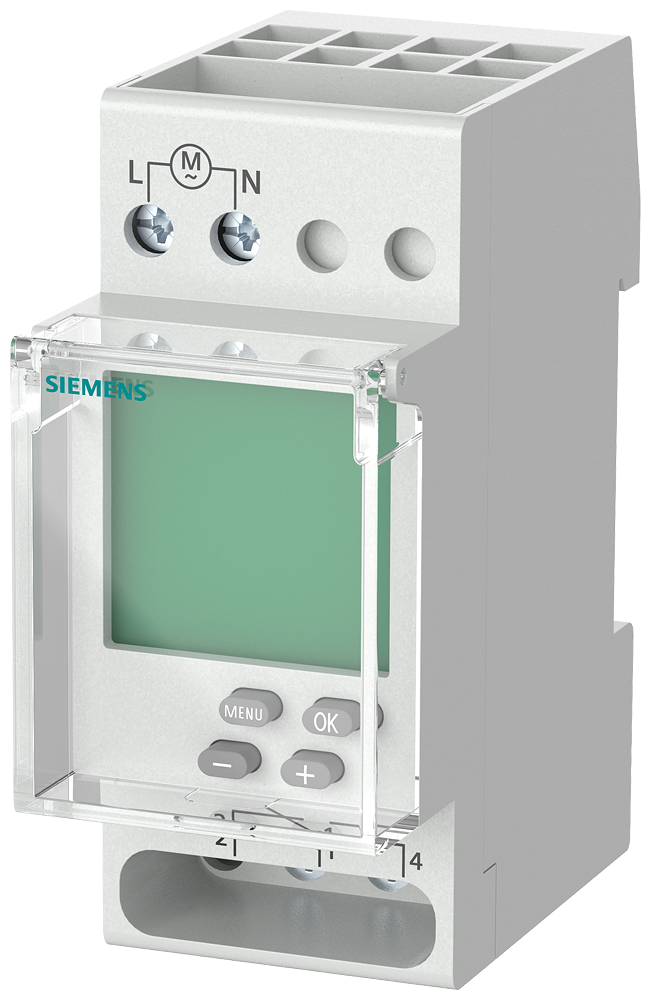

Siemens 7LF4511-0 WEEKLY TIMER 1-CHANNEL 2TE 230V/16A TOP.
Technical Specifications
- Manufacturer part number (MPN)
- 7LF4511-0
- EAN / GTIN
- 4001869473512
- Sales unit
- pcs
- Voltage
- 230 V
- Shortest switching time channel 1
- 60 s
- Mounting method
- DIN rail
- Number of channels
- 1
- Voltage type (supply voltage)
- AC
- Frequency supply voltage
- 50–60 Hz
- Accuracy per day
- 1.5 s
- Text guidance in display
- Yes
- 60 min program
- Yes
- 24 h program
- Yes
- Weekly program
- Yes
- Annual program
- No
- Holiday program
- No
- Impulse program
- Yes
- Cycle program
- No
- Astro program
- No
- Random program
- No
- Hour meter
- No
- Mains synchronous
- Yes
- Quartz controlled
- No
- Radio-controlled
- No
- Contact type
- Change-over contact
- Number of contacts
- 1
- Number of memory locations
- 28
- Automatic switching summer/winter time
- No
- Suitable for manual operation
- Yes
- External push button input
- No
- Switching preselection
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Potential free switch contact
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 2
- Width
- 36 mm
- Height
- 83 mm
- Depth
- 70 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 4001869473512
- SAP 1000705773
- Code 8321963
