Siemens Impulse Relay 1NO 230 V AC 16 A Coil 12 V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5TT4101-3 is a mechanical impulse relay rated 16 A at 230 V AC with one normally-open contact and a 12 V AC coil. The single-module DIN-rail device switches incandescent loads up to 2000 W and fluorescent loads up to 500 VA for staircase and corridor lighting circuits. Suitable for manual operation via the front actuator.
Technical Specifications
- Manufacturer part number (MPN)
- 5TT4101-3
- EAN / GTIN
- 4001869312378
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Contact configuration
- 1 NO
- Mounting method
- DIN rail
- Function
- Mechanical switch
- Built-in depth
- 70 mm
- Width in number of modular spacings
- 1
- Type of control voltage 1
- AC
- Type of control voltage 2
- AC/DC
- Suitable for manual operation
- Yes
- Voltage type (supply voltage)
- AC
- Max. switching current (cos phi = 0.6)
- 16 A
- Max. incandescent lamp load
- 2000 W
- Max. load fluorescent lamp
- 500 VA
- Rated switch current
- 16 A
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4001869312378
- SAP 1000085696
- Code 8879167
Product Documentation
More from Siemens
Siemens
Siemens Fuse switch-disconnector, 160 A/00
3NP5060-0CB00
Siemens
Siemens Signal Converter 24 V AC/DC 3-Way Isolation 0-10V/0-10V
3RS70001AE00
Siemens
Siemens SIMATIC ET 200SP, Digital input module, DI 8X 24V DC Basic, type 2 (IEC 61131), sink input, (PNP, P-reading)
6ES7131-6BF01-2AA0
Siemens
Siemens Neozed Bottom Sleeve Size D01 10A63A
5SH5010
Siemens
Siemens Residual current circuit breaker with overcurrent, 3P, 32A, Type A 300MA, B-Curve, 6 kA, Un: 400V only, conductor cross-section 35 mm², torque 2Nm
5SU1636-6FP32
Siemens
Siemens Rail adapter for rails with 60mm distance, 3-Pole for 3VA12 and 3VA20-22
8US1213-4AP03
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC34-0UF0
Siemens

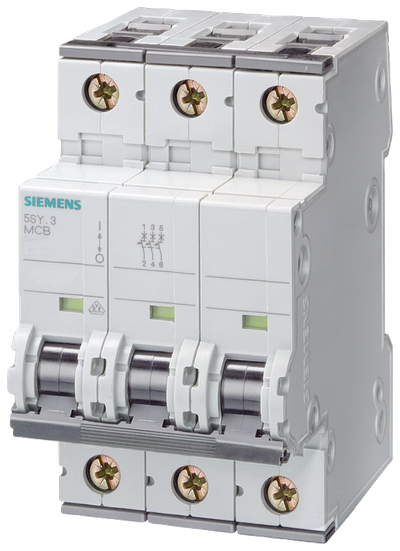

Siemens SENTRON 5SY7316-7 Miniature Circuit Breaker 3-Pole C16A 15KA
