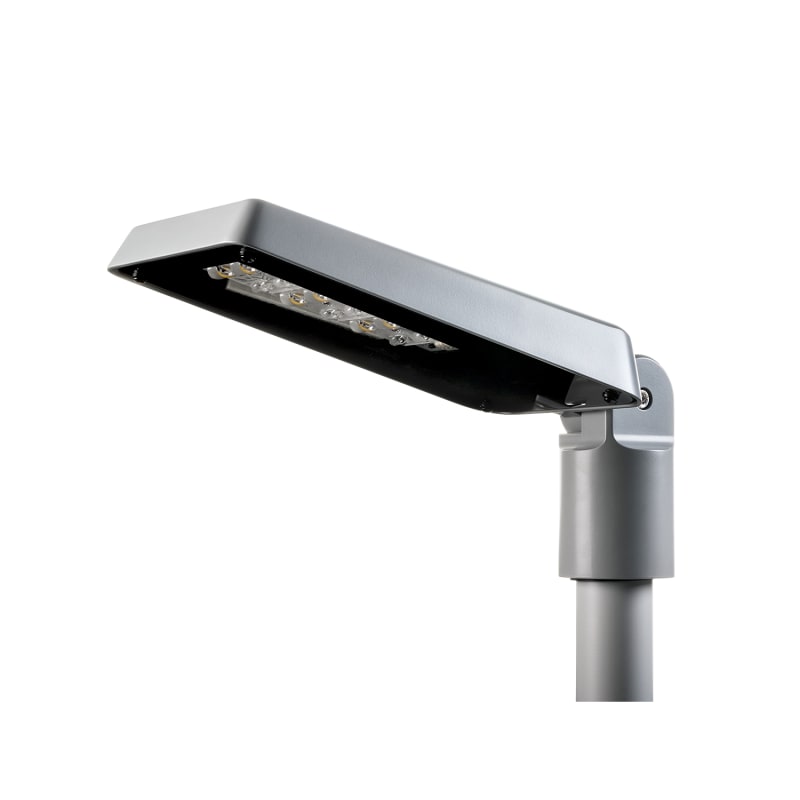

SG Armaturen
Fenes Lens 1 35W/730 3790LM
Part number212632EAN / GTIN7021982126321HS code9405.11
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212632 FENES LENS 1 3790lm 3000K, 35W, Ra>70, SDCM:3, Class II, IP66, IK08, 100.000, L95/B50>.
Technical Specifications
- Manufacturer part number (MPN)
- 212632
- EAN / GTIN
- 7021982126321
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 35 W
- Luminous flux
- 3790 lm
- Efficacy
- 108 lm/W
- Lumen
- 3790lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>70
- Lifetime
- 100,000 L95/B50>
- Mounting
- Pole - Side Top (Ø42-48/Ø60), Outdoor
- Function
- Application: infrastructure for non-motorized traffic, including cycle tracks, pedestrian walkways, and illuminated recreational trails.
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- PMMA, Polymethylmethacrylat
- ULOR (<1%)
- Yes, up to 17° tilt angle
- Type
- On/Off
- Luminaire class
- Class II
- IK Class
- IK08
- Contains light source of energy class
- C
- Housing
- Aluminium
- Colour
- Grey RAL 7042
- Optics
- Tempered glass
- Module
- Lens 1
- Cable
- Cable 2x1.0mm² 8m, H05RN-F
- Wind projected area
- S=0,0175m² T=0,048m²
- Length (mm) L
- 370
- Width (mm) W
- 170
- Height (mm) H
- 145
- Weight (kg) gross/net
- 3.578 / 2.93
- Packaging dimensions (mm)
- 480 x 180 x 95
- Protection class according to IEC 61140
- II
- Width
- 170 mm
- Conductor cross section
- 1 mm²
- RAL-number
- 7042
- Housing colour
- Grey
- Dimmable
- No
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 70-79
- Cable length
- 2 m
- With light sensor
- No
- Number of poles
- 2
- Length
- 370 mm
- Height/depth
- 145 mm
- Housing material
- Aluminium
- Material
- Aluminium
- Lamp type
- LED not exchangeable
- Material cover
- Glass opal
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Built-in battery
- No
- Suitable for number of light sources
- 1
- Max. system power
- 35 W
- Rated luminous flux according to IEC 62722-2-1
- 3790 lm
- Colour of light
- White
- Remote control
- None
- Type of wiring
- Ending
- Colour consistency (McAdam ellipse)
- SDCM3
- Luminaire efficacy
- 108 lm/W
- Nominal operation time
- 10–12
- Operation by Bluetooth
- No
- Dimming DALI-2
- No
- Dimming D4i
- No
- Solar powered
- No
- With integrated PV panel
- No
- Suitable for off-grid power system
- No
- Device emplacement
- Outdoor positioning
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982126321
- SAP 1200664431
- Code 83105345
Product Documentation
Document preview: Fenes Lens 1 35W/730 3790LM (212632) — Specification sheet
