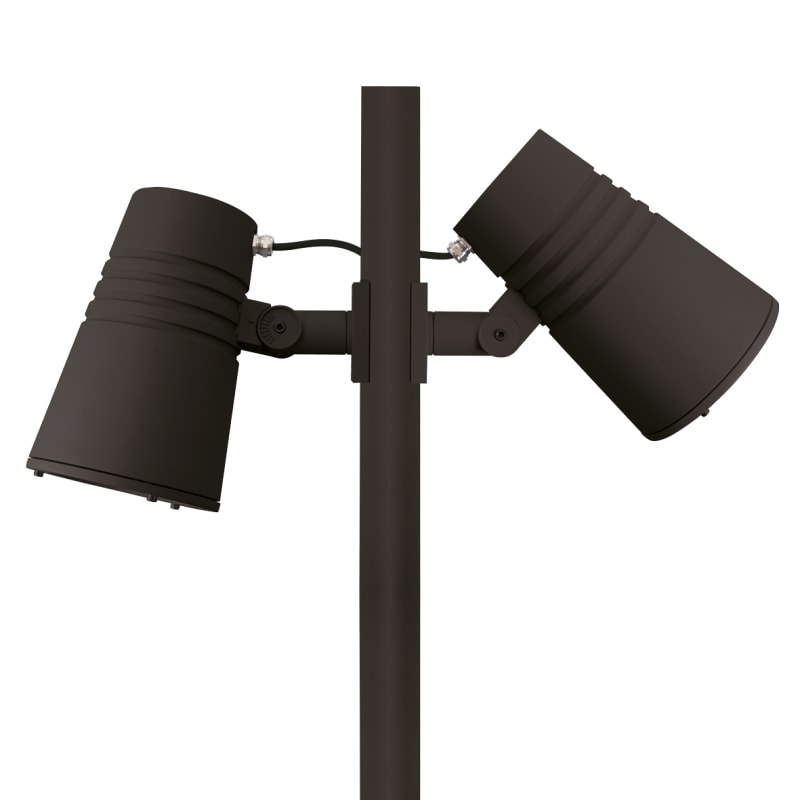

WAX Flood Black 27° 18-32W/830 IP66

SG Armaturen 8246091464 Wax Flood 27° 15/28W - Ra>80 - CD IP65 Class II - 3000K Black.

Manufacturer part number (MPN)

8246091464

EAN / GTIN

5703821173131

Sales unit

pcs

IP rating

IP66

Efficacy

89/90lm/W

Lumen

1450/2420lm

Wattage

14/23W

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L90/B10>

Mounting

Pole, wall, bollard or earthing rod, Outdoor

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 10, B16: 17, C10: 16, C16: 27

Type of light source

LED

Luminous flux

1450/2420lm

MacAdams factor

SDCM: 2

Light distribution

Direct

Optic

Reflector Flood 27dg.

Beam angle

27°

UGR

UGR<19

ULOR (<1%)

Yes, up to 59° tilt angle

Type

On/Off

Luminaire class

Class II

IK Class

IK07

Surge protection

Integrated (min. 4 kV)

Contains light source of energy class

D

Breeam

Fulfils Hea 01 for flicker free lighting

Sunda Hus

A

Housing

Die-cast aluminium

Colour

Black (20% gloss)

Optics

Tempered glass

Cable

Cable 2x1mm² 10m

Wind projected area

0,0403m² - Max 5,3 kg

Height (mm) H

268

Diameter (mm) D

180

Weight (kg) gross/net

4.66 / 4.46

Packaging dimensions (mm)

275 x 275 x 275

Protection class according to IEC 61140

II

Width

180 mm

Conductor cross section

1 mm²

Housing colour

Black

Dimmable

No

Surface protection

Galvanised

Voltage type

AC

With movement sensor

No

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

80-89

Cable length

10 m

Diameter

180 mm

With light sensor

Yes

Number of poles

2

Length

268 mm

Height/depth

268 mm

Housing material

Aluminium

Lamp type

LED not exchangeable

With presence detector

No

Material cover

Glass transparent

Impact strength

IK07

Degree of protection (IP)

IP66

Built-in battery

No

Suitable for number of light sources

1

Max. system power

27 W

Rated luminous flux according to IEC 62722-2-1

2440 lm

Colour of light

White

Remote control

None

IFTTT support available

No

Type of wiring

Ending

Rated life time L90/B10 at 25 °C

100000 h

Colour consistency (McAdam ellipse)

SDCM2

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming Touch and Dim

No

Dimming with push-button

No

No dim function

No

Luminaire efficacy

90 lm/W

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Dimming DALI-2

No

Dimming D4i

No

Solar powered

No

With integrated PV panel

No

Suitable for off-grid power system

No

Zhaga-D4i certified

No

Power factor

100

Country of origin

Denmark

HS Code

9405.42

• EAN 5703821173131
• SAP 1200056092
• Code 81904665
