SG Armaturen

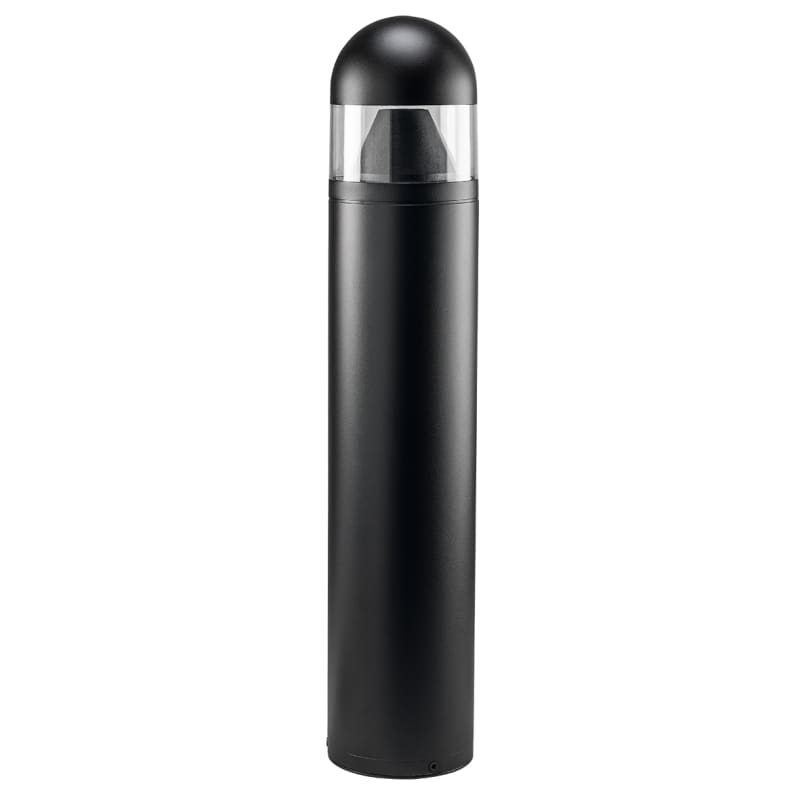

Kjevik Black 26W/830
Part number623800EAN / GTIN7021986238006HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623800 KJEVIK BLACK 3000K, 26W, 2060lm, Ra>80, SDCM 2, Class II, IP66, 100.000, L90/B10>.
Technical Specifications
- Manufacturer part number (MPN)
- 623800
- EAN / GTIN
- 7021986238006
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 26 W
- Efficacy
- 79 lm/W
- Lumen
- 2060lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Outdoor
- System wattage
- 26W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2060lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- UGR
- UGR<28
- Visible flicker (PstLM)
- 0.03
- Stroboscopic flicker (SVM)
- 0.02
- Photobiological safety
- RG 1
- ULOR (<1%)
- Yes
- Type
- On/Off
- Luminaire class
- Class II
- IK Class
- IK10
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Optics
- UV-stabilized polycarbonate
- Height (mm) H
- 1010
- Diameter (mm) D
- 200
- Weight (kg) gross/net
- 10.75 / 8.7
- Packaging dimensions (mm)
- 1030 x 215 x 215
- Protection class according to IEC 61140
- II
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 26 W
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 200 mm
- With light sensor
- No
- Number of poles
- 2
- Height/depth
- 1010 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Material cover
- Plastic, transparent
- Impact strength
- IK10
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- 41-80° - Wide beam
- Nominal current
- 350–700 mA
- Max. system power
- 26 W
- Rated luminous flux according to IEC 62722-2-1
- 2060 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Luminaire efficacy
- 79 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A++
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Flickering value Pst LM
- 0.03
- Stroboscope effect value SVM
- 0.02
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986238006
- SAP 1200618621
- Code 83022367
Product Documentation
Document preview: Kjevik Black 26W/830 (623800) — Specification sheet
