SG Armaturen

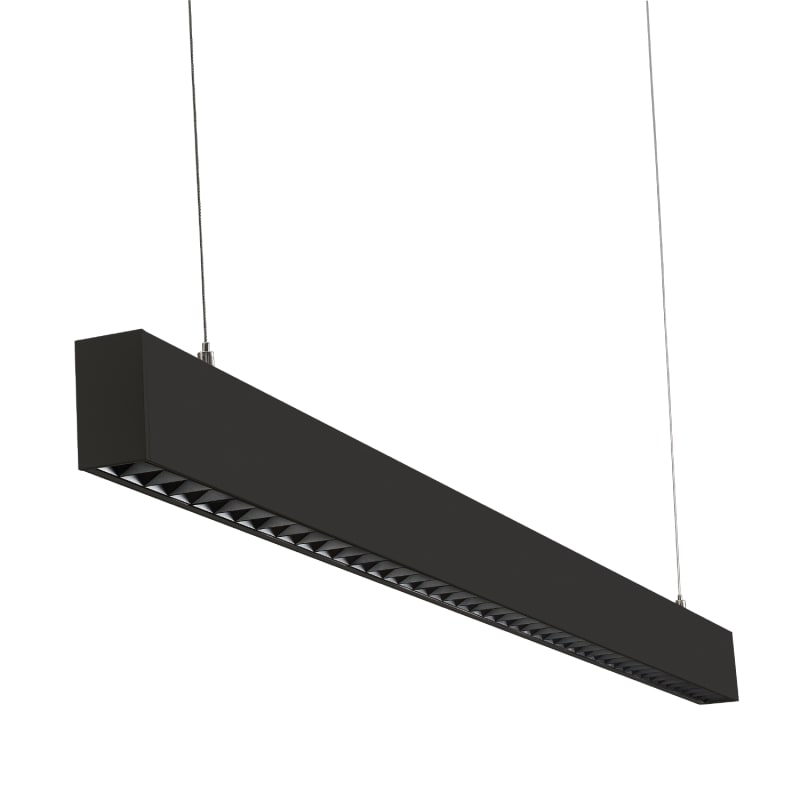

Inspire 1200 Black 34W/830 DIM 1× PULL CORD
Part number212472EAN / GTIN7021982124723HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212472 INSPIRE BLACK 3000K DIM 1× PULL CORD.
Technical Specifications
- Manufacturer part number (MPN)
- 212472
- EAN / GTIN
- 7021982124723
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 34 W
- Efficacy
- 122 lm/W
- Lumen
- 4140lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Suspended, Indoor
- System wattage
- 34W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 14, B16: 23, C10: 22, C16: 36
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 4140lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 50/50%
- Optic
- Cubic Optic Black
- UGR
- UGR<10
- Photobiological safety
- RG 1
- Type
- Dim 1x pull switch
- Luminaire class
- Class I
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black
- Optics
- Polycarbonat (PC)
- Wire set
- 2x2m wire kit
- Cable
- Cable 3x0,75mm² 2,5m
- Length (mm) L
- 1243
- Width (mm) W
- 38
- Height (mm) H
- 67
- Weight (kg) gross/net
- 3.6 / 3.3
- Packaging dimensions (mm)
- 1365 x 90 x 61
- Device emplacement
- Indoor positioning
- Material
- Aluminium
- Nominal operation time
- 8–12
- RAL-number
- 9005
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- Black
- Material cover
- Plastic, transparent
- Type of grid
- None
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- No dim function
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Light outlet
- Direct/indirect
- Degree of protection (IP)
- IP20
- Impact strength
- IK04
- Protection class according to IEC 61140
- I
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 34 W
- Rated luminous flux according to IEC 62722-2-1
- 4140 lm
- Colour of light
- White
- Luminaire efficacy
- 122 lm/W
- Colour rendering index CRI
- 80-89
- Unified Glare Ratio (UGR)
- 9.2
- Power factor
- 100
- Width
- 38 mm
- Height/depth
- 67 mm
- Length
- 1243 mm
- Type of wiring
- Ending
- Number of poles
- 1
- Conductor cross section
- 0.75 mm²
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982124723
- SAP 1200701108
- Code 83595524
Product Documentation
Document preview: Inspire 1200 Black 34W/830 DIM 1× PULL CORD (212472) — Specification sheet
