SG Armaturen

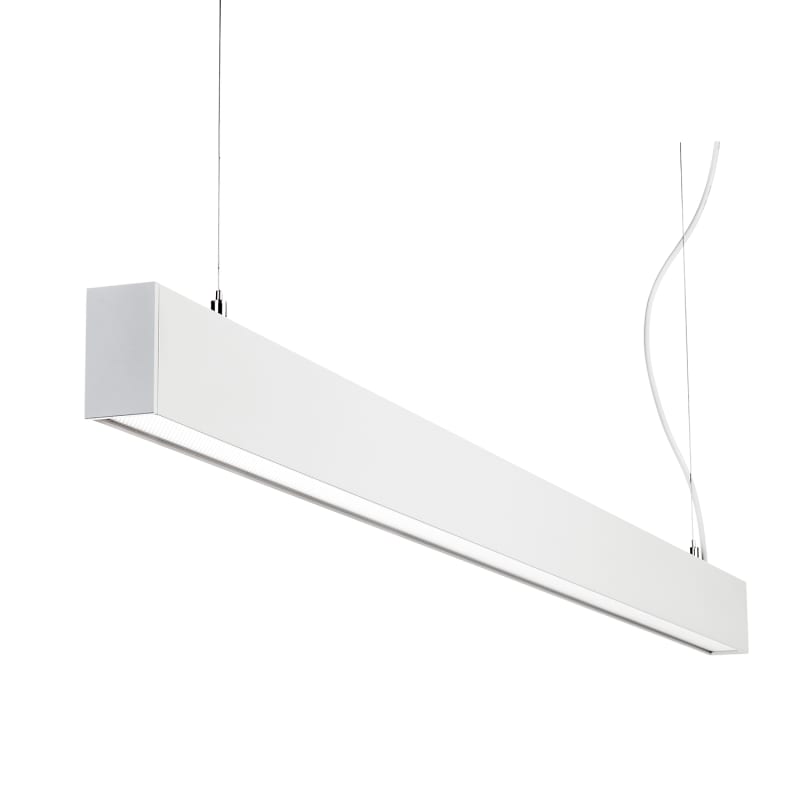

Inspire 1200 White Prismatic 29W/830 DIM

Name: Inspire 1200 White Prismatic 29W/830 DIM
Brand: SG Armaturen
SKU: 212490

Part number212490EAN / GTIN7021982124907HS code9405.11

Lighting & Electrical Accessories

LED Lights

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

SG Armaturen 212490 INSPIRE 1200 WHITE PRISMATIC 3000K DIM 1× PULL CORD, 34W, 4000lm,.

Technical Specifications

Manufacturer part number (MPN): 212490
EAN / GTIN: 7021982124907
Sales unit: pcs
Package quantity: 4 pcs
Power: 29 W
Efficacy: 138 lm/W
Lumen: 4000lm
IP Class: IP20
Colour temperature: 3000K
Colour rendering (Ra): Ra>80
Lifetime: 100,000 L90/B10>
Mounting: Suspended, Indoor
System wattage: 29W
Voltage: 220-240V
Frequency (Hz): 50/60Hz
Max. luminaires per circuit breaker: B10: 12, B16: 20, C10: 21, C16: 29
Leakage current (mA): 0.07
Type of light source: LED
Luminous flux: 4000lm
Programmable with CLO: Yes (affects lumen output)
MacAdams factor: SDCM: 3
Light distribution: Direct/Indirect 55/45%
Optic: Prism Optic
UGR: UGR<19
Visible flicker (PstLM): <1
Stroboscopic flicker (SVM): <0,4
Photobiological safety: RG 0
Type: Dim 1x pull switch
Driver: 800mA
Luminaire class: Class I
Contains light source of energy class: B
Breeam: Fulfils Hea 01 for flicker free lighting
Housing: Aluminium
Optics: Polycarbonat (PC)
Module: 1200
Wire set: 2x2m wire kit
Cable: Cable 3x0,75mm² 2,5m
Length (mm) L: 1240
Width (mm) W: 38
Height (mm) H: 67
Weight (kg) gross/net: 3.6 / 3.3
Packaging dimensions (mm): 1365 x 90 x 61
Lamp type: LED not exchangeable
Suitable for number of light sources: 1
Housing material: Aluminium
Housing colour: White
Material cover: Plastic, transparent
Type of grid: None
Voltage type: AC
Nominal current: 800 mA
Type of control gear: LED operating device current-controlled
Dimming LineSwitch: No
Dimming Its Wave Reduction: No
No dim function: No
Colour consistency (McAdam ellipse): SDCM3
Light outlet: Direct/indirect
Direct-/indirect proportion separately controllable: No
Degree of protection (IP): IP20
Impact strength: IK00
Protection class according to IEC 61140: I
Emergency power supply integrated: No
Filament test according to IEC 60695-2-11: None
Max. system power: 29 W
Rated luminous flux according to IEC 62722-2-1: 4000 lm
Colour of light: White
Luminaire efficacy: 138 lm/W
Colour rendering index CRI: 80-89
Unified Glare Ratio (UGR): 19
Power factor: 100
Colour of light adjustable: No
Luminous flux adjustable: Positions
Beam angle adjustable: No
Width: 38 mm
Height/depth: 67 mm
Length: 1240 mm
Type of wiring: Ending
Number of poles: 3
Conductor cross section: 2.5 mm²
Emergency power supply system: None
Emergency function monitoring system: None
Country of origin: China

Standards & Compliance

HS Code: 9405.11

Cross References

EAN 7021982124907
SAP 1200747629
Code 83885582

Product Documentation

Inspire 1200 White Prismatic 29W/830 DIM (212490) — Specification sheet Download

Document preview: Inspire 1200 White Prismatic 29W/830 DIM (212490) — Specification sheet
