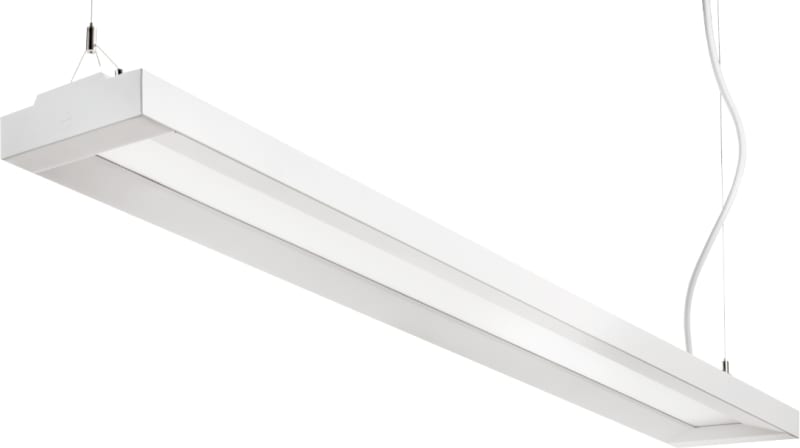

Ecoline 1600 D/In White 35W/830 DALI
Part number212806EAN / GTIN7021982128066HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212806 ECOLINE 1600 D/In WHITE 3000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 212806
- EAN / GTIN
- 7021982128066
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 35 W
- Efficacy
- 155 lm/W
- Lumen
- 5430lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0,07
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 5430lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 55/45%
- Optic
- Opal prismatic
- UGR
- UGR<16
- Visible flicker (PstLM)
- 1
- Stroboscopic flicker (SVM)
- 0,4
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
- Module
- 1600
- Wire set
- 2x2m wire kit
- Cable
- Cable 5x0,75mm² 2,5m
- Length (mm) L
- 1600
- Width (mm) W
- 166
- Height (mm) H
- 58
- Weight (kg) gross/net
- 6.5 / 5.7
- Packaging dimensions (mm)
- 1620 x 180 x 72
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982128066
- SAP 1200855478
- Code 84076014
Product Documentation
Document preview: Ecoline 1600 D/In White 35W/830 DALI (212806) — Specification sheet
