SG Armaturen

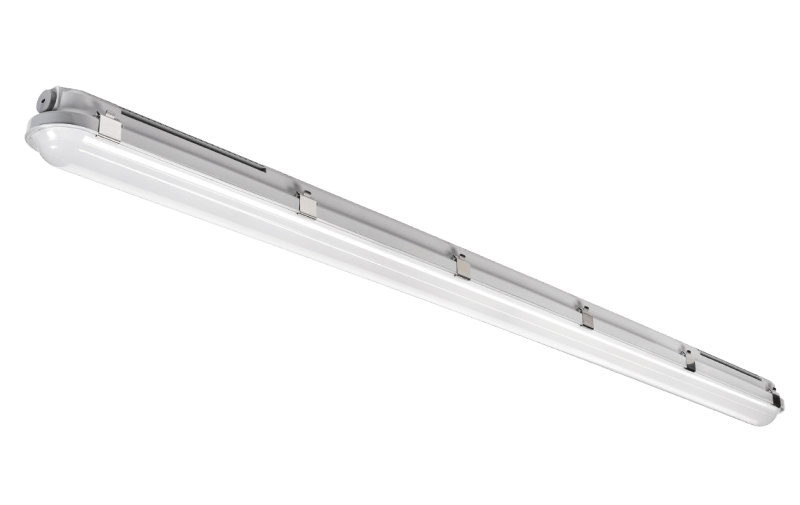

TYSNES66 1500 40W/840 DALI
Part number120037EAN / GTIN7021981200374HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120037 TYSNES 66 1500 4000K DALI, 40W, 6400lm, Ra>80, SDCM 3, L80/B20>100.000, IK10, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- 120037
- EAN / GTIN
- 7021981200374
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 40 W
- Efficacy
- 160 lm/W
- Lumen
- 6400lm
- IP Class
- IP66
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 40W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 12, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0.29
- Type of light source
- LED
- Luminous flux
- 6400lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 117°
- UGR
- UGR<25
- Type
- DALI-2
- Luminaire class
- Class I
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Food Safety approved (IFS and HACCP)
- Yes
- Housing
- UV-stabilized polycarbonate
- Colour
- Grey
- Optics
- UV-stabilized polycarbonate
- Module
- 1500
- Connection
- 5-pole screwless terminal block with 5x2,5mm² through wiring
- Length (mm) L
- 1500
- Width (mm) W
- 85
- Height (mm) H
- 80
- Weight (kg) gross/net
- 1.98 / 1.78
- Packaging dimensions (mm)
- 1525 x 85 x 90
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200374
- SAP 1200695504
- Code 83556998
Product Documentation
Document preview: TYSNES66 1500 40W/840 DALI (120037) — Specification sheet
