SG Armaturen

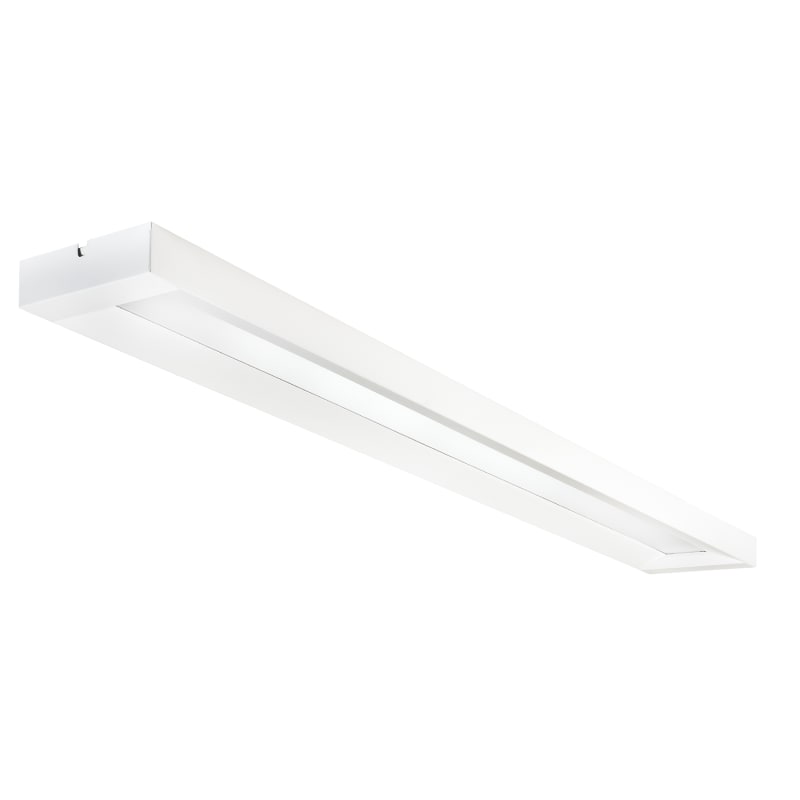

Ecoline 1200 White 32W/840 DALI
Part number212094EAN / GTIN7021982120947HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212094 ECOLINE 1200 WHITE 4000K DALI, 31W, Ra>80, SDCM:3, Kl In, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 212094
- EAN / GTIN
- 7021982120947
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 32 W
- Efficacy
- 138 lm/W
- Lumen
- 4150lm
- Wattage
- 30W
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Suspended or surface, Indoor
- System wattage
- 30W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 18, B16: 28, C10: 29, C16: 47
- Leakage current (mA)
- 0.30
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 4150lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- UGR
- UGR<19
- Visible flicker (PstLM)
- 1
- Stroboscopic flicker (SVM)
- 0,4
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Optics
- Acrylic (PMMA)
- Module
- 1200
- Connection
- 3+2 pole Screwless terminal block
- Length (mm) L
- 1235
- Width (mm) W
- 166
- Height (mm) H
- 47
- Weight (kg) gross/net
- 4.48 / 4.08
- Packaging dimensions (mm)
- 1255 x 180 x 62
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982120947
- SAP 1200685160
- Code 83342496
Product Documentation
Document preview: Ecoline 1200 White 32W/840 DALI (212094) — Specification sheet
