SG Armaturen
Arena 1200 77W/840 DALI
Part number8246092489EAN / GTIN5703821174480HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

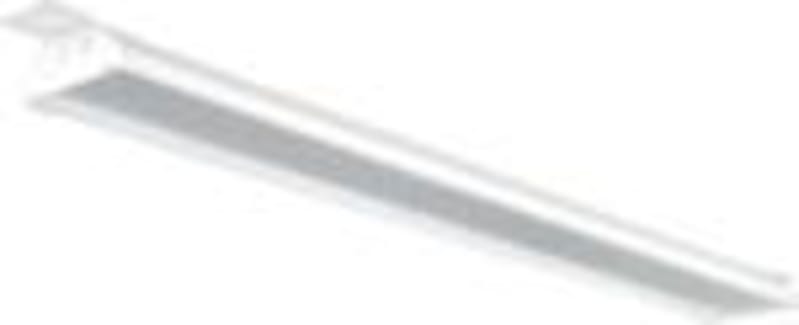

SG Armaturen 8246092489 Arena 1200 89W 4000K Ra>80 DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 8246092489 EAN / GTIN: 5703821174480 Sales unit: pcs Power: 77 W Replaces: 8246093491 Efficacy: 165 lm/W Lumen: 11720lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 70,000 L90/B10> Mounting: Suspended or surface, Indoor System wattage: 71W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 9, B16: 15, C10: 16, C16: 26 Leakage current (mA): 0,9 Type of light source: LED Light source included: Yes Luminous flux: 11720lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Medium Beam angle: Medium UGR: UGR<19 Visible flicker (PstLM): 0,03 Stroboscopic flicker (SVM): 0 Type: DALI-2 Luminaire class: Class I IK Class: IK08 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1194 Width (mm) W: 138 Height (mm) H: 63 Weight (kg) gross/net: 3.8 / 3.6 Packaging dimensions (mm): 1285 x 148 x 65 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821174480
- SAP 1200056007
- Code 81904822
Product Documentation
Document preview: Arena 1200 77W/840 DALI (8246092489) — Specification sheet
