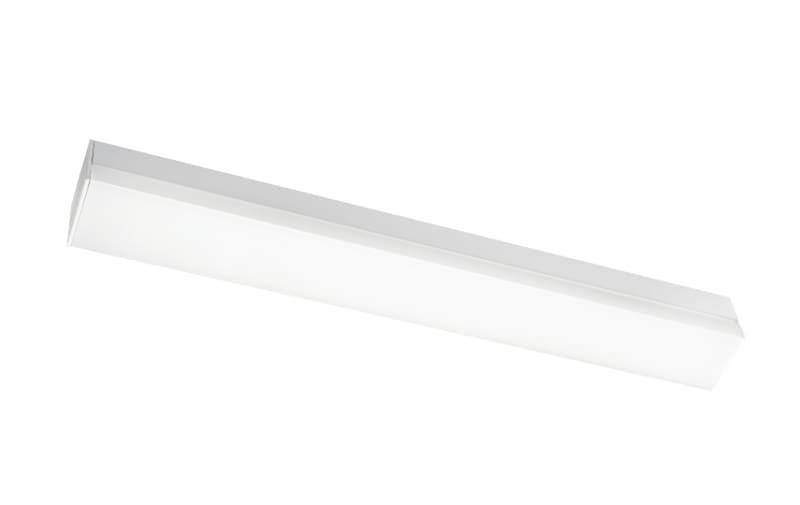

Prelude SQ White 16W/940 IP44
Part number111380EAN / GTIN7021981113803HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 111380 L80/B10>60 000 hours, 1540lm, 96 lm/W, SDCM3, IP44 (horizontal) IP20 (vertical), IK05, phase-cut dim.
Technical Specifications
- Manufacturer part number (MPN)
- 111380
- EAN / GTIN
- 7021981113803
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 131 lm/W
- Lumen
- 1700lm
- IP Class
- IP44 (mounted horizontally) / IP40 (mounted vertically)
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 43, C16: 69
- Type of light source
- LED
- Luminous flux
- 1700lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Acrylic diffuser
- UGR
- UGR<28
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK05
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Width (mm) W
- 519
- Height (mm) H
- 59
- Depth (D)
- 62
- Weight (kg) gross/net
- 0.898 / 0.799
- Packaging dimensions (mm)
- 528 x 65 x 65
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981113803
- SAP 1200457316
- Code 82528455
Product Documentation
Document preview: Prelude SQ White 16W/940 IP44 (111380) — Specification sheet
More from SG Armaturen
SG Armaturen
Hurdal MAXI 1200 3K Sensor DIM
113135
SG Armaturen
Artes Round Graphite 8W/827
641731
SG Armaturen
SWITCH IF Double LIMIT SWITCH BLACK
76101
SG Armaturen
RAX SOFT 170-200 Connect Satin 4000K (212903)
SG Armaturen
RAX 180-190 Glass IP44 Clear White
212912
SG Armaturen
Ecoline 1200 D/In White 32W/830
212812
SG Armaturen
Shopline 3T L-Joint Black
314432
SG Armaturen
LUNA DECO IN-Ground BOX
630042
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 111380?
- 111380 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 111380.
- What is the HS code for 111380?
- The customs tariff (HS) code for 111380 is 9405.11.
- Who manufactures 111380?
- 111380 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 111380?
- Yes — the 111380 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 111380?
- The minimum order quantity is 1.
- Is 111380 available?
- Yes — 111380 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
