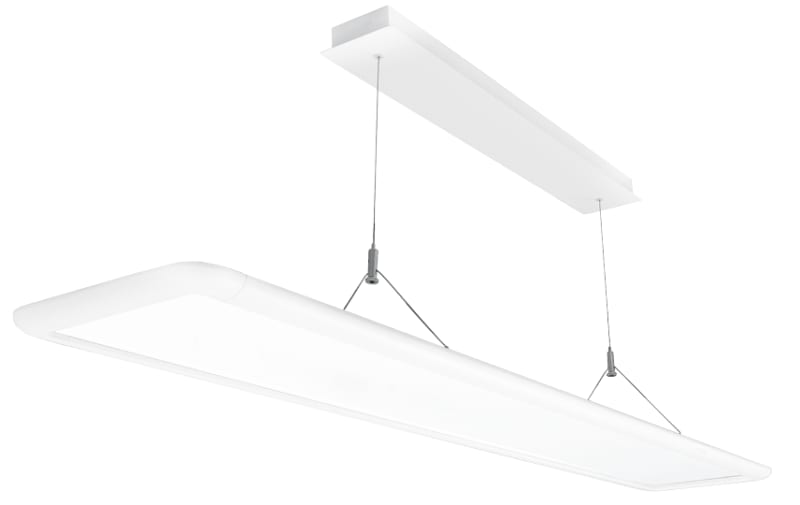

Sense AIR 840 Emergency Lighting 3HR

SG Armaturen 212244 SENSE AIR 840 EMERGENCY LIGHTING 3 HOURS.

Manufacturer part number (MPN)

212244 EAN / GTIN: 7021982122446 Sales unit: pcs Efficacy: 100 lm/W Lumen: 3600lm IP Class: IP20 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Indoor System wattage: 36W Max. luminaires per circuit breaker: B10: 14, B16: 23, C10: 22, C16: 36 Type of light source: LED Luminous flux: 3600lm Emergency lumen: 340 lm MacAdams factor: SDCM: 3 minimum ambient temperature: 0°C Light distribution: Direct/Indirect 70/30% Optic: Opal prismatic UGR: UGR<19 Photobiological safety: RG 0 Type: Emergency 3H/trailing edge Luminaire class: Class I Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Steel, Aluminium Colour: White Optics: Acrylic (PMMA) Wire set: 2x2m wire kit Connection: Screwless terminal block Length (mm) L: 1200 Width (mm) W: 210 Height (mm) H: 13 Weight (kg) gross/net: 4.9 / 4.7 Packaging dimensions (mm): 1250 x 365 x 42 Operation by Bluetooth: No With movement sensor: No Suitable for light line configuration: No Suitable for workplace according to EN 12464-1: No Lamp type: LED not exchangeable With light source: Yes Suitable for number of light sources: 1 Housing material: Aluminium Housing colour: White material cover: Plastic matt/satinized Type of grid: None Voltage type: AC Nominal voltage: 224–240 V Type of control gear: LED operating device current-controlled With control gear: Yes Exchangeable control gear: No Dimming 0-10 V: No Dimming 1-10 V: No Dimming DALI: No Dimming DALI-2: No Dimming DMX: No Dimming programmable: No Dimming DSI: No Dimming RF: No Dimming potentiometer (integrated): No Dimming GPRS: No Dimming LineSwitch: No Dimming manufacturer's proprietary system: No Dimming mains voltage modulation: No Dimming phase cut-off (trailing edge): No Dimming phase cut-on (leading edge): No Dimming Sine Wave Reduction: No Dimming Touch and Dim: No Dimming Zigbee: No Dimming with push-button: No No dim function: Yes Colour consistency (McAdam ellipse): SDCM3 Light outlet: Direct/indirect Energy efficiency class of the built-in lamp: A++, A+, A (LED) Highest energy efficiency class of the exchangeable lamp: A++ Lowest energy efficiency class of the exchangeable lamp: A++ Degree of protection (IP): IP20 Impact strength: IK00 Protection class according to IEC 61140: I Suitable for emergency lighting: Yes Emergency power supply integrated: Yes Filament test according to IEC 60695-2-11: None Suitable for lamp power: 36 W Max. system power: 36 W Rated luminous flux according to IEC 62722-2-1: 3600 lm Colour of light: White Luminaire efficacy: 93 lm/W Colour rendering index CRI: 80-89 Unified Glare Ratio (UGR): 17 Power factor: 100 Colour of light adjustable: No Luminous flux adjustable: No Beam angle adjustable: No Width: 200 mm Height/depth: 13 mm Length: 1200 mm With suspension: Yes Pendant length: 0–2000 mm Type of wiring: Suitable for loop-through wiring Number of poles: 1 Conductor cross section: 2.5 mm² Connection type: Push-in clamp Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No IFTTT support available: No Dimmable: No With light sensor: No With presence detector: No Emergency power supply system: Peripheral (individual battery) Country of origin: China

HS Code

9405.11

• EAN 7021982122446
• SAP 1200271115
• Code 82246869
