SG Armaturen

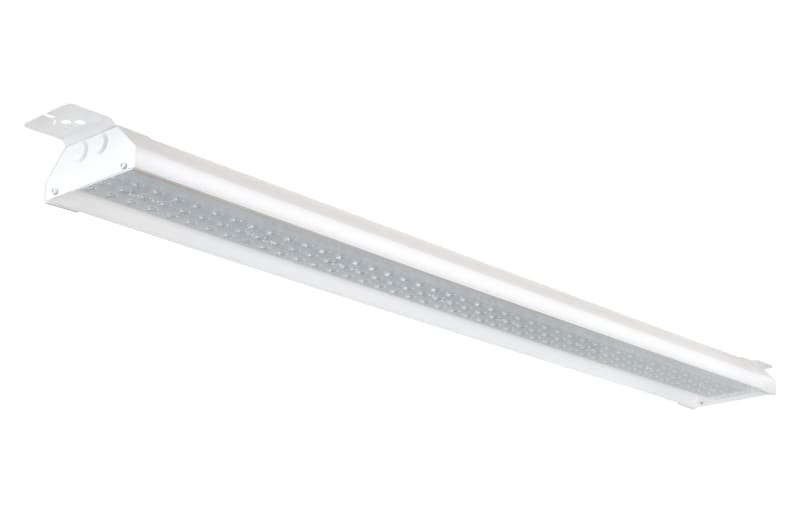

Arena 1500 81W/840 WIDE
Part number8246094762EAN / GTIN5703821178167HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094762 ARENA 1500 WIDE 89W 11690lm 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094762 EAN / GTIN: 5703821178167 Sales unit: pcs Power: 81 W Replaces: 8246093462 Efficacy: 149 lm/W Lumen: 11800lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 70,000 L90/B10> Mounting: Suspended or surface, Indoor System wattage: 79W Voltage: 220-240V Frequency (Hz): 50/60Hz Max. luminaires per circuit breaker: B10: 10, B16: 16, C10: 17, C16: 27 Leakage current (mA): 0.31 Type of light source: LED Luminous flux: 11800lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Wide Beam angle: Wide Photobiological safety: RG 1 Type: On/Off Luminaire class: Class I IK Class: IK08 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1500 Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1769 Width (mm) W: 137 Height (mm) H: 57 Weight (kg) gross/net: 4.8 / 4.6 Packaging dimensions (mm): 1285 x 148 x 65 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821178167
- SAP 1200332034
- Code 82324536
Product Documentation
Document preview: Arena 1500 81W/840 WIDE (8246094762) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline Round Diffuser OPAL 1,8M
391453
SG Armaturen
SOFT Square Frame 3XWHITE
903258
SG Armaturen
Remote Control Neostrip RF RGB
391456
SG Armaturen
Sense 495 OPAL Prism 34W/830
212291
SG Armaturen
Dome TRIO OPAL Plastic
605
SG Armaturen
Energy-saving Dome (163)
SG Armaturen
WAGO PLUG 2M 3-pole (212172)
SG Armaturen
Prelude Dome LED M/ Socket (455mm)
3954
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8246094762?
- 8246094762 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 8246094762.
- What is the HS code for 8246094762?
- The customs tariff (HS) code for 8246094762 is 9405.11.
- Who manufactures 8246094762?
- 8246094762 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 8246094762?
- Yes — the 8246094762 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8246094762?
- The minimum order quantity is 1.
- Is 8246094762 available?
- Yes — 8246094762 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
