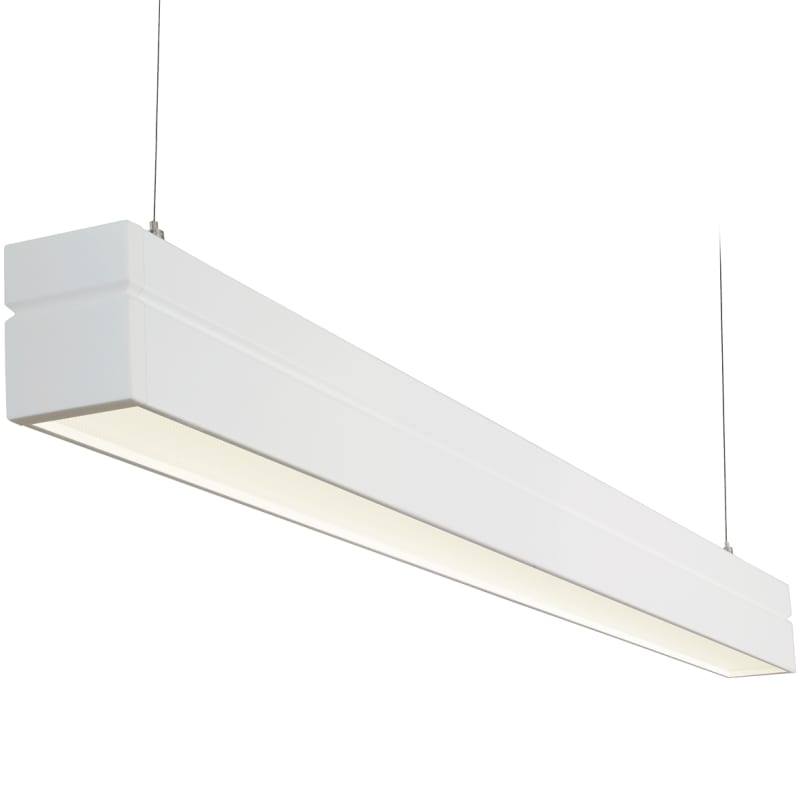

Facet D/In White 23W/840 Pull cord

SG Armaturen 8246096074 Facet D/In 27W 3470lm white 4000K pull cord with spring 2 x 2m wire set.

Manufacturer part number (MPN)

8246096074

EAN / GTIN

5703821181167

Sales unit

pcs

Power

23 W

Efficacy

147 lm/W

Lumen

3380lm

IP Class

IP20

Colour temperature

4000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L80/B10>

Mounting

Suspended, Indoor

System wattage

23W

Voltage

220-240V

Leakage current (mA)

0.30

Type of light source

LED

Luminous flux

3380lm

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 60/40%

Optic

Lens C, prismatic Conical

UGR

UGR<19

Photobiological safety

RG 1

Type

Dim 1x pull switch

Luminaire class

Class I

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Sheet steel

Colour

White (RAL 9010, 20% gloss)

Optics

Acrylic (PMMA)

Wire set

2x2m wire kit w/loop M4

Cable

Cable 3x0,75mm² 2,5m w/ Schuko white

Length (mm) L

1164

Width (mm) W

64

Height (mm) H

80

Weight (kg) gross/net

3.7 / 3.5

Packaging dimensions (mm)

1215 x 66 x 90

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Housing material

Steel

Housing colour

White

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

Dimming GPRS

No

Dimming LineSwitch

No

Dimming Its Wave Reduction

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Rated life time L80/B10 at 25 °C

100012 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Emergency power supply integrated

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

23 W

Rated luminous flux according to IEC 62722-2-1

3380 lm

Colour of light

White

Luminaire efficacy

147 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

19

Power factor

100

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

112 mm

Height/depth

80 mm

Length

1196 mm

Type of wiring

Ending

Number of poles

5

Conductor cross section

0.75 mm²

Dimmable

No

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

Denmark

HS Code

9405.11

• EAN 5703821181167
• SAP 1200496052
• Code 82623245
