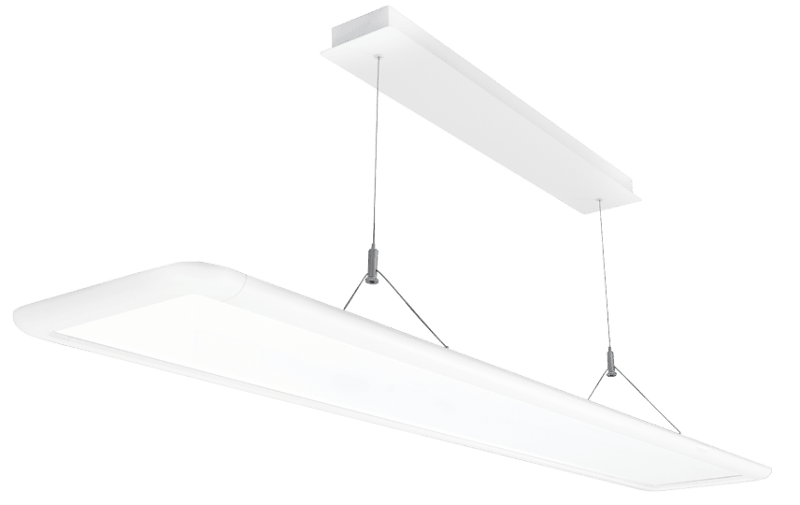

Sense AIR 3500LM 39W/830 DALI

SG Armaturen 212241 SENSE AIR 830 DALI.

Manufacturer part number (MPN)

212241

EAN / GTIN

7021982122415

Sales unit

pcs

Power

39 W

Luminous flux

3500 lm

Efficacy

97 lm/W

Lumen

3500lm

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L80/B20>

Mounting

Suspended, Indoor

System wattage

36W

Max. luminaires per circuit breaker

B10: 8, B16: 13, C10: 12, C16: 20

Leakage current (mA)

0.29

Type of light source

LED

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 70/30%

Optic

Opal prismatic

UGR

UGR<19

Photobiological safety

RG 0

Type

DALI-2 / Push Dim

Luminaire class

Class I

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Steel, Aluminium

Colour

White

Optics

Acrylic (PMMA)

Wire set

2x2m wire kit

Connection

Screwless terminal block

Length (mm) L

1200

Width (mm) W

210

Height (mm) H

13

Weight (kg) gross/net

4.7 / 4.5

Packaging dimensions (mm)

1250 x 365 x 42

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Nominal operation time

8–12

RAL-number

9003

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

White

Material cover

Plastic matt/satinized

Type of grid

None

Voltage type

AC

Nominal voltage

221–240 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

Yes

Dimming DALI-2

Yes

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

None

Suitable for lamp power

36 W

Max. system power

36 W

Rated luminous flux according to IEC 62722-2-1

3500 lm

Colour of light

White

Luminaire efficacy

90 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

16.8

Power factor

100

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

200 mm

Height/depth

13 mm

Length

1200 mm

With suspension

Yes

Pendant length

0–2000 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

1

Conductor cross section

2.5 mm²

Connection type

Push-in clamp

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021982122415
• SAP 1200258003
• Code 82232118
