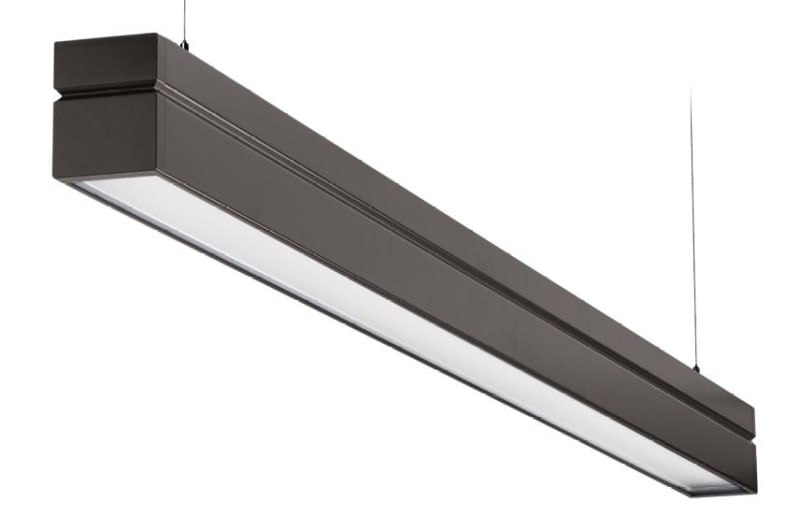

Facet D/In Black 35W/830 Pull cord (8246093394)

SG Armaturen 8246093394 Facet D/In 44W black 3000K Pull cord DIM incl.Wireopph.

Manufacturer part number (MPN)

8246093394

EAN / GTIN

5703821174640

Sales unit

pcs

Power

35 W

Efficacy

144 lm/W

Lumen

5030lm

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L80/B10>

Mounting

Suspended, Indoor

System wattage

35W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 19, B16: 30, C10: 31, C16: 51

Leakage current (mA)

0.85

Type of light source

LED

Luminous flux

5030lm

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect 50/50%

Optic

Lens C, prismatic Conical

UGR

UGR<19

Photobiological safety

RG 1

Type

Dim (down) 1x pull switch sensor (up/down)

Luminaire class

Class I

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Sheet steel

Colour

Black

Optics

Acrylic (PMMA)

Wire set

2x2m wire kit w/loop M4

Cable

Cable 3x0,75mm² 2,5m w/ Schuko white

Length (mm) L

1514

Width (mm) W

64

Height (mm) H

80

Weight (kg) gross/net

6.5 / 6.3

Packaging dimensions (mm)

1565 x 66 x 90

Device emplacement

Indoor positioning

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Housing material

Steel

Housing colour

White

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

Dimming GPRS

No

Dimming LineSwitch

No

Dimming Its Wave Reduction

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Rated life time L80/B10 at 25 °C

100002 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Emergency power supply integrated

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

35 W

Rated luminous flux according to IEC 62722-2-1

5030 lm

Colour of light

White

Luminaire efficacy

144 lm/W

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

19

Power factor

100

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

64 mm

Height/depth

80 mm

Length

1514 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

0.75 mm²

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

Denmark

HS Code

9405.11
