SG Armaturen

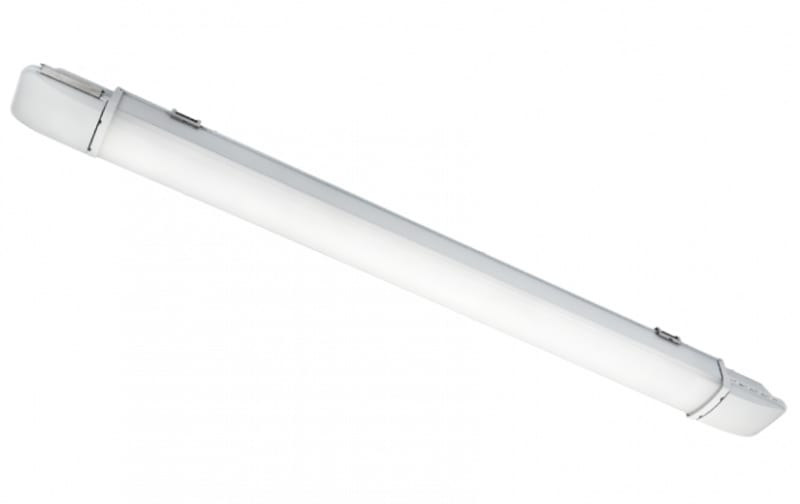

AREA66 46W/840 IP66 IK10 DALI
Part number120004EAN / GTIN7021981200046HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120004 L80/B50> 100 000 hours, 5770lm, 119 lm/W, SDCM3, IP66, IK10, L:1460mm.
Technical Specifications
- Manufacturer part number (MPN)
- 120004 EAN / GTIN: 7021981200046 Sales unit: pcs Package quantity: 6 pcs IP rating: IP66 Power: 46 W Efficacy: 129 lm/W Lumen: 5930lm Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B10> Mounting: Surface, Indoor System wattage: 46W Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 24, C16: 38 Leakage current (mA): 0.30 Type of light source: LED Luminous flux: 5930lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Opal Beam angle: 100° UGR: UGR<28 Type: DALI-2 Luminaire class: Class I IK Class: IK10 Contains light source of energy class: D Breeam: Fulfils Hea 01 for flicker free lighting Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1460 Width (mm) W: 92 Height (mm) H: 70 Weight (kg) gross/net: 2.904 / 2.42 Packaging dimensions (mm): 1515 x 110 x 80 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200046
- SAP 1200055980
- Code 81904850
Product Documentation
Document preview: AREA66 46W/840 IP66 IK10 DALI (120004) — Specification sheet
More from SG Armaturen
SG Armaturen
DISC Pendelkit Black
606095
SG Armaturen
Sense Surface 640X200 4000K
212326
SG Armaturen
Calando Brushed Steel 10W/830 KL.II
297514
SG Armaturen
BELL MINI Black/White 5W/927 H:205
312361
SG Armaturen
Jupiter PRO Outdoor Graphite 40°
940341
SG Armaturen

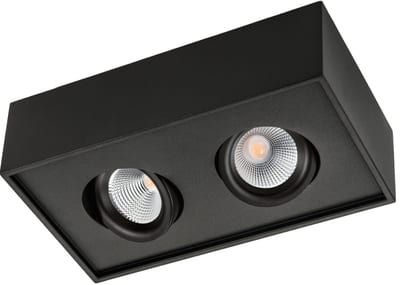

CUBE LUX Black 2X7W/927
902554
SG Armaturen

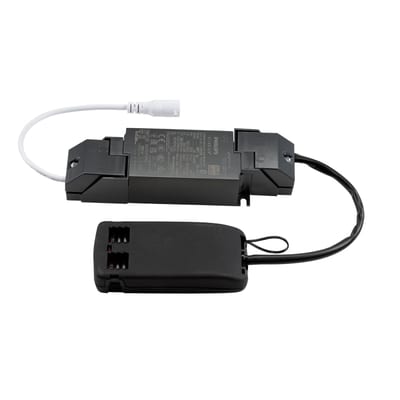

Connect Driver KIT Wireless 1050 MA
820508
SG Armaturen

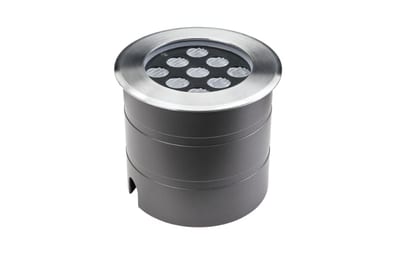

NEMO II MINI Asymmetric 9W/830 32°
630073
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 120004?
- 120004 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 120004.
- What is the HS code for 120004?
- The customs tariff (HS) code for 120004 is 9405.11.
- Who manufactures 120004?
- 120004 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 120004?
- Yes — the 120004 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 120004?
- The minimum order quantity is 1.
- Is 120004 available?
- Yes — 120004 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
