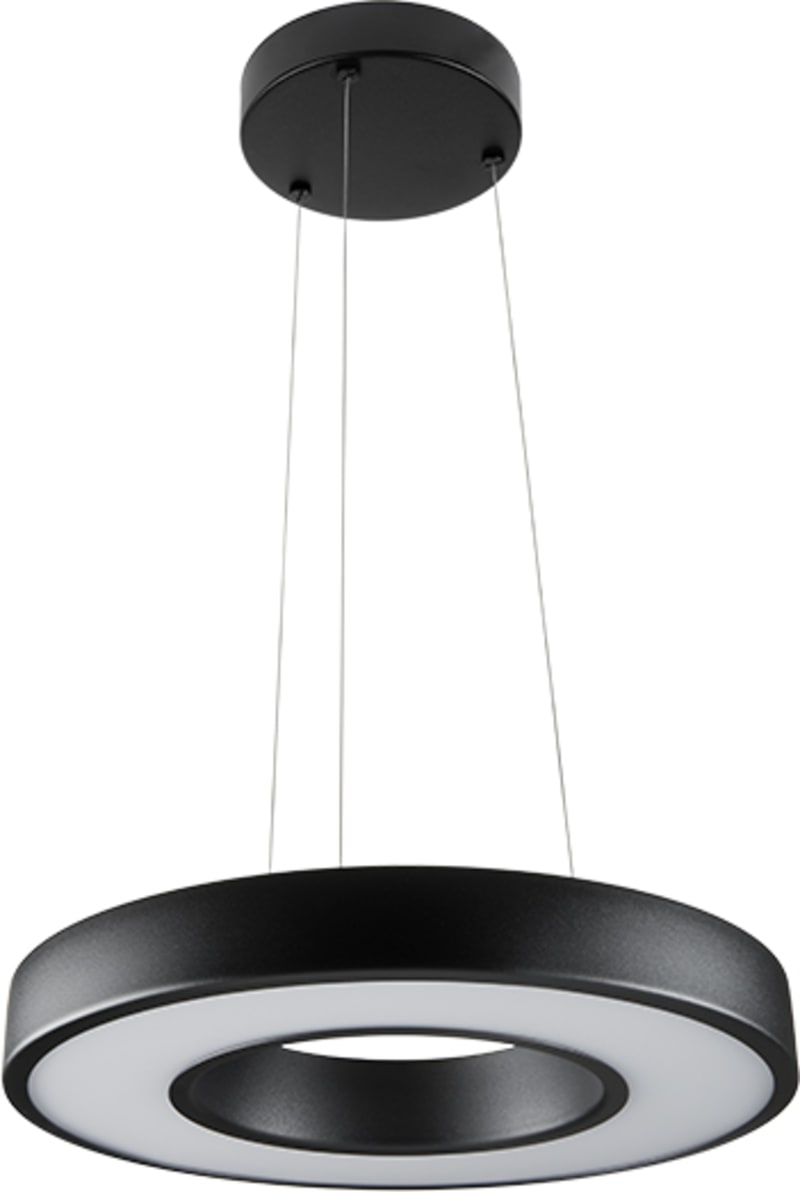

SG Armaturen Circulus Pendant Luminaire Black 19 W 3000 K

The SG Armaturen Circulus is a modern LED pendant luminaire, 360 mm diameter and 280 mm high, in a black RAL 9004 steel housing with an acrylic opal optic. Rated 19 W drawing 1530 lm at 3000 K, colour rendering Ra > 80, and IP20 for indoor use. Supplied with a two-metre suspension wire that carries both mounting and mains supply, so no separate feed cable is required. Typical use is in meeting rooms, receptions and hospitality spaces where a single discreet hanging luminaire is desired.

Manufacturer part number (MPN)

214006

EAN / GTIN

7021982140068

HS code

8544.42

Sales unit

pcs

Package quantity

6 pcs

Power

19 W

Efficacy

102 lm/W

Lumen

1530lm

Wattage

15W

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

50,000 L80/B10>

Mounting

Suspended, Indoor

System wattage

15W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 19, B16: 30, C10: 31, C16: 51

Type of light source

LED

Luminous flux

1530lm

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Opal

Beam angle

110°

UGR

UGR<25

Photobiological safety

RG 0

Type

Trailing edge

Luminaire class

Class I

Contains light source of energy class

B

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Steel

Colour

Black (RAL 9004)

Optics

Acrylic (PMMA)

Connection

Screwless terminal block

Height (mm) H

280

Diameter (mm) D

360

Weight (kg) gross/net

3 / 2.3

Packaging dimensions (mm)

370 x 370 x 95

HS Code

8544.42

• EAN 7021982140068
• SAP 1200036850
• Code 81557401
