SG Armaturen

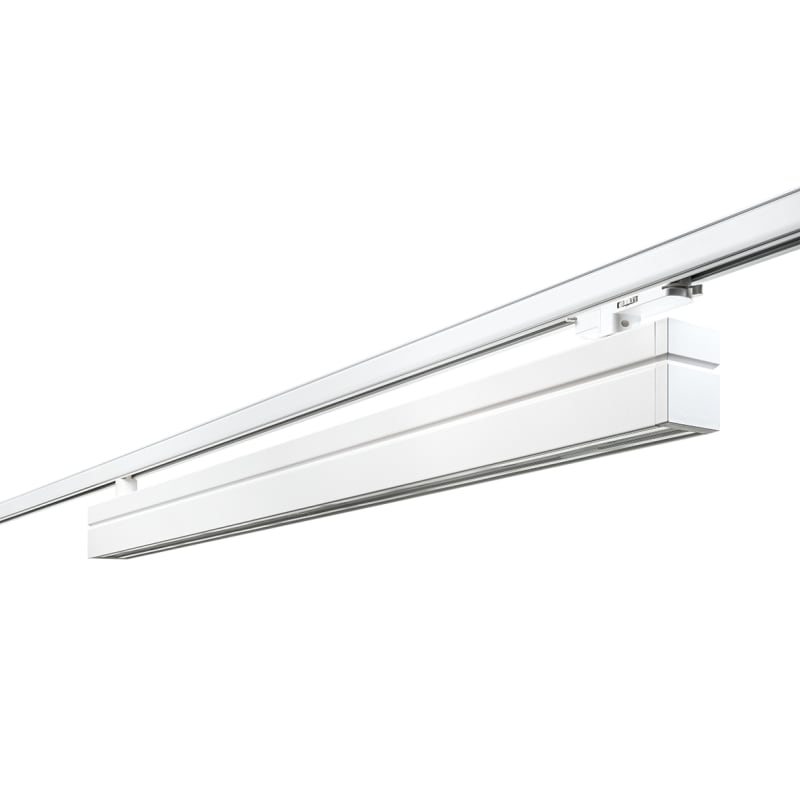

Sector PRO 3T White 70W/840 DALI
Part number8246096401EAN / GTIN5703821181907HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246096401 SECTOR PRO 3-T WHITE 4000K DALI, 70W, 10750lm, Ra>80, SDCM3, L80/B20 50000, CL1.
Technical Specifications
- Manufacturer part number (MPN)
- 8246096401
- EAN / GTIN
- 5703821181907
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Power
- 70 W
- Efficacy
- 158 lm/W
- Lumen
- 10880lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 69W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 15, B16: 24, C10: 25, C16: 41
- Leakage current (mA)
- 0.39
- Type of light source
- LED
- Luminous flux
- 10880lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Lens
- UGR
- UGR>28
- Visible flicker (PstLM)
- 0
- Stroboscopic flicker (SVM)
- 0.01
- Photobiological safety
- RG 1
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel, end caps in ABS
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- ShopLine DALI track (adapter included)
- Length (mm) L
- 1156
- Width (mm) W
- 64
- Height (mm) H
- 145
- Weight (kg) gross/net
- 4.3 / 4
- Packaging dimensions (mm)
- 1218 x 157 x 71
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821181907
- SAP 1200596586
- Code 82975816
Product Documentation
Document preview: Sector PRO 3T White 70W/840 DALI (8246096401) — Specification sheet
More from SG Armaturen
SG Armaturen
Lineal S 1120 White 29W/840 DALI
8246094694
SG Armaturen
WAX Wall Arm 500 mm, Grey, IP66
8249044117
SG Armaturen
Inspire 1200 White 34W/840 DALI
212083
SG Armaturen
Kjevik Shielding Black 180°
623804
SG Armaturen

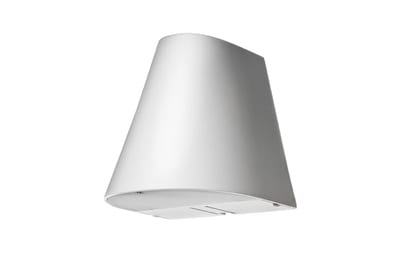

Spike White 11W/830 2XPLUG
611911
SG Armaturen

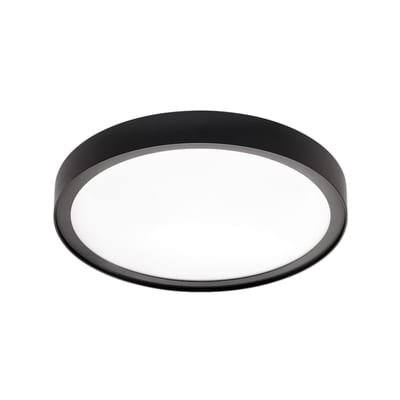

DISC 360 Black 21W/840
606221
SG Armaturen

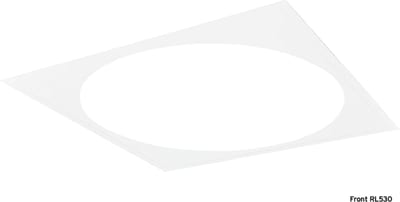

Multi Concept RL530 Front
8249044382
SG Armaturen

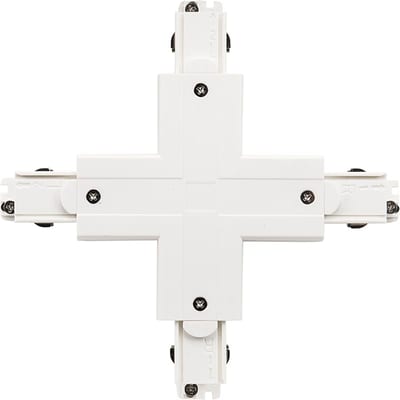

Shopline 3T X-Joint White
