SG Armaturen

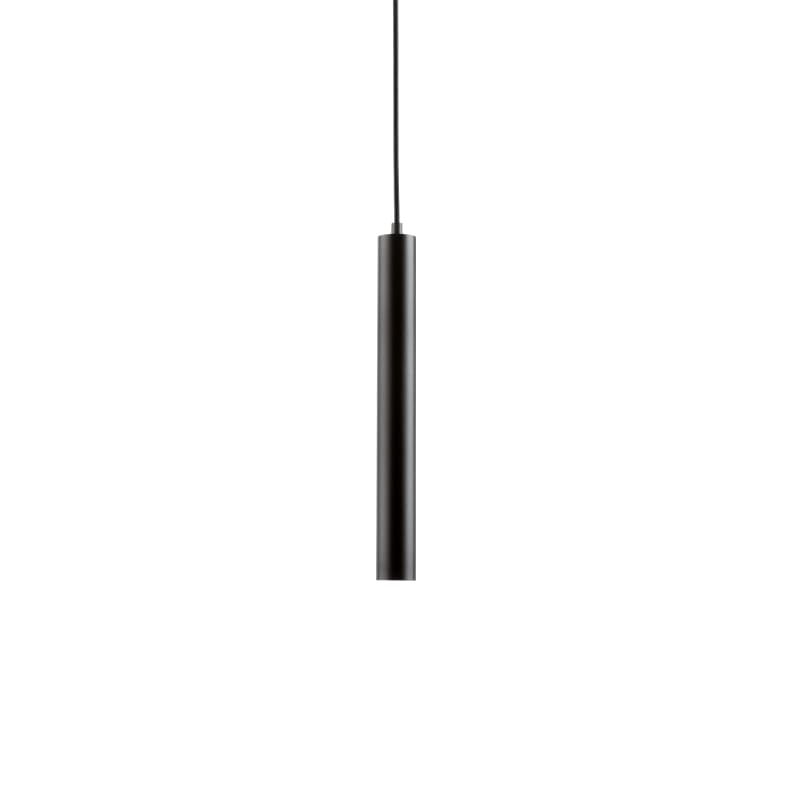

ZIP TUBE Pendant Micro 340mm (320504)
Part number320504EAN / GTIN7021983205049HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320504 ZIP TUBE PENDANT MICRO 340MM BLACK 3000K, 7W, 370lm, Ra98, SDCM2, IP20, L90/B10 50.000.
Technical Specifications
- Manufacturer part number (MPN)
- 320504
- EAN / GTIN
- 7021983205049
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Efficacy
- 53 lm/W
- Lumen
- 370lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 7W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 180, B16: 290, C10: 180, C16: 290
- Type of light source
- LED
- Luminous flux
- 370lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector medium
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Module
- 340mm Pendant
- Cable
- Cable 3m
- Connection
- Zip track (adapter included)
- Height (mm) H
- 354
- Diameter (mm) D
- 39
- Weight (kg) gross/net
- 0.683 / 0.532
- Packaging dimensions (mm)
- 100 x 100 x 370
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- Black
- Material cover
- Plastic, structured
- Voltage type
- AC
- Type of control gear
- Not required
- Colour consistency (McAdam ellipse)
- SDCM2
- Light outlet
- Direct
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- II
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 7 W
- Colour of light
- White
- Colour rendering index CRI
- 90-100
- Unified Glare Ratio (UGR)
- 17.2
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 39 mm
- Height/depth
- 354 mm
- Length
- 39 mm
- Diameter
- 39 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983205049
- SAP 1200966352
- Code 84309379
Product Documentation
Document preview: ZIP TUBE Pendant Micro 340mm (320504) — Specification sheet
