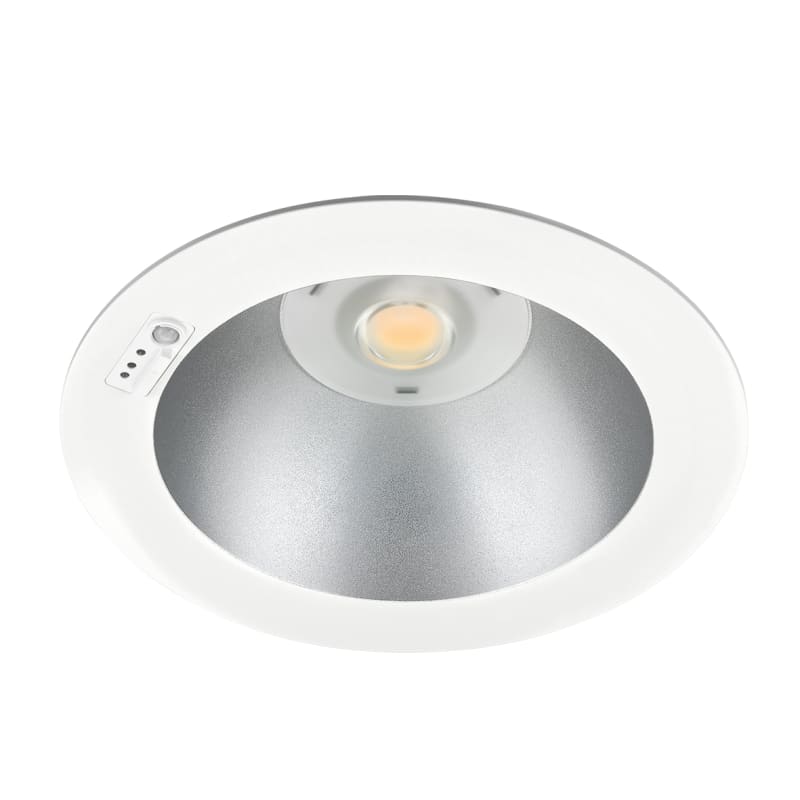

RAX SOFT 220-240 Connect Satin 3000K
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212904 RAX SOFT 220-240 CONNECT SATIN 3000K, Ra>80, SDCM2,IK08, IP20, L90/B10>100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212904
- EAN / GTIN
- 7021982129049
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Colour temperature
- 3000 K
- Efficacy
- 118 lm/W
- Lumen
- 2240lm
- IP Class
- IP44 (mounted horizontally) / IP20 (mounted vertically)
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 19W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 2240lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- Visible flicker (PstLM)
- 0.09
- Stroboscopic flicker (SVM)
- 0.05
- Photobiological safety
- RG 1
- Type
- Connect
- Luminaire class
- Class II SELV
- Contains light source of energy class
- C
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 256
- Cut-out (mm)
- 220-240
- Weight (kg) gross/net
- 1.175 / 0.93
- Packaging dimensions (mm)
- 260 x 260 x 110
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982129049
- SAP 1200912097
- Code 84183245
Product Documentation
More from SG Armaturen
SG Armaturen
SG Armaturen Inspire R 600 Mounting Spring Kit
320908
SG Armaturen
ZIP TUBE Pendant MINI 385mm (320520)
SG Armaturen
Sense Basic 300X1200 White 4000LM 3K PHASE-CUT
212832
SG Armaturen
SG Armaturen Sense Surface-Mount Frame Black 300x1200 mm
212259
SG Armaturen
Lineal 80 1400 D/A Black 3000K/4000K DALI
320963
SG Armaturen
Lineal 80 1120 D/In White 26W/2CCT DALI
320924
SG Armaturen

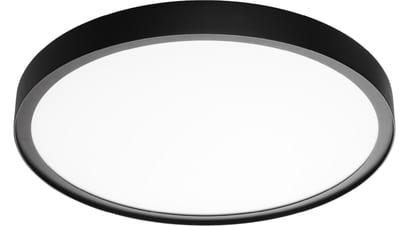

DISC 480 D/In Black 34W 3K/4K
606182
SG Armaturen

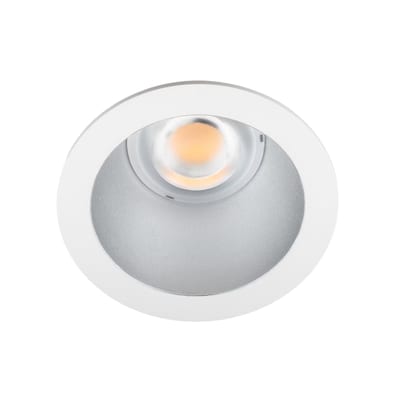

RAX SOFT 100 Satin 1200 3000K Ra>80
