SG Armaturen

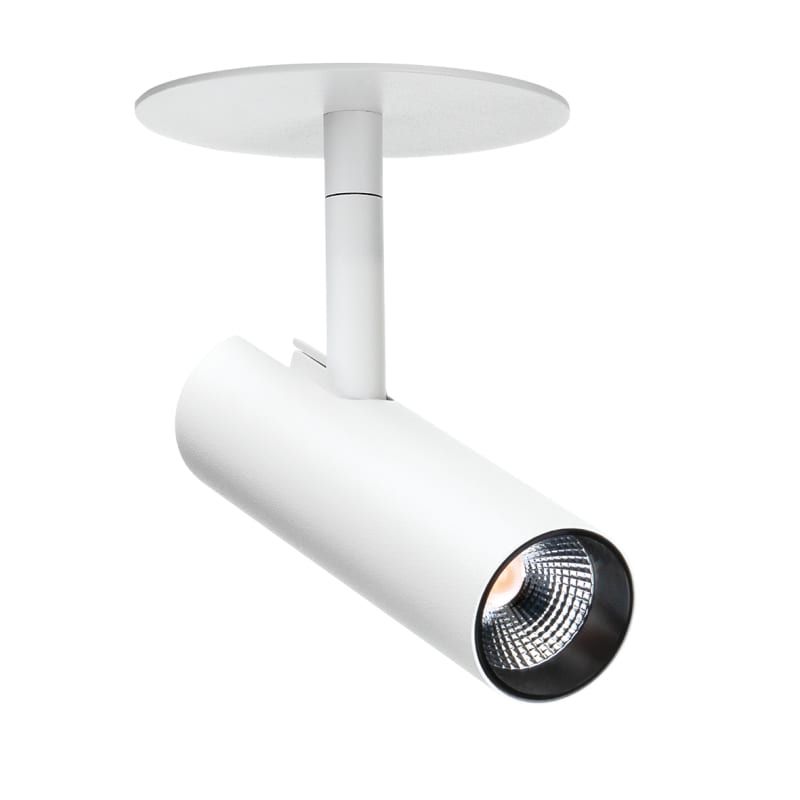

TUBE Micro R White 15W/930 DALI
Part number320751EAN / GTIN7021983207517HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320751 TUBE MICRO R WHITE 3000K DALI, 15W 700lm, IP20, CLASS II, RA>98, SDCM 2, L90/B10 50,000.
Technical Specifications
- Manufacturer part number (MPN)
- 320751
- EAN / GTIN
- 7021983207517
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 15 W
- Efficacy
- 47 lm/W
- Lumen
- 700lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 15W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Type of light source
- LED
- Luminous flux
- 700lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 36°
- UGR
- UGR<22
- Type
- DALI-2
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- 5 pol Linect / screwless terminal block
- Length (mm) L
- 135
- Width (mm) W
- 39
- Height (mm) H
- 135
- Cut-out (mm)
- 83
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.8 / 0.478
- Packaging dimensions (mm)
- 215 x 100 x 105
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983207517
- SAP 1200690641
- Code 83337841
Product Documentation
Document preview: TUBE Micro R White 15W/930 DALI (320751) — Specification sheet
More from SG Armaturen
SG Armaturen
Arena ECO 1200 76W/840 Medium DALI
607017
SG Armaturen
ZIP TUBE Pendant MINI MS 14W/927 40°
3208880
SG Armaturen
Frame Round MAXI Graphite 19W/830 Emergency Lighting
605165
SG Armaturen
ZIP PRO 3T White 40W/940 40°
320735
SG Armaturen
RAX 200 28W TW Jointim
212309
SG Armaturen

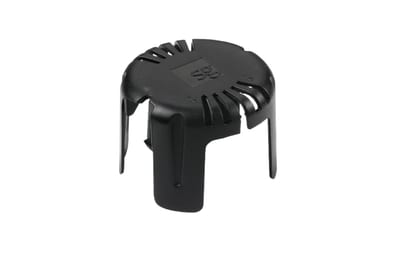

Junistar Isosafe Black Plastic Cover
768
SG Armaturen

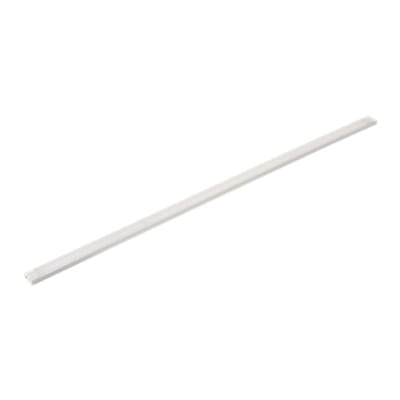

Slimline PRO 570mm 6,5W/940
391248
SG Armaturen

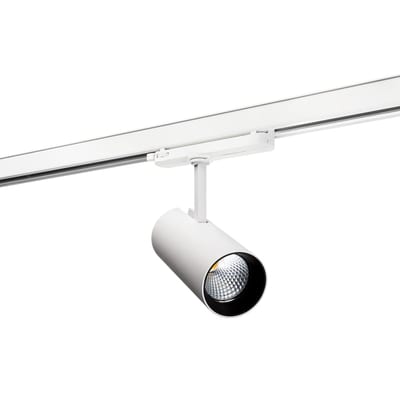

TUBE PRO 3T White 41W/940 32°
