SG Armaturen
RAX SOFT 150 Satin TW Jointim 2700-6500K
Part number212574EAN / GTIN7021982125744HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

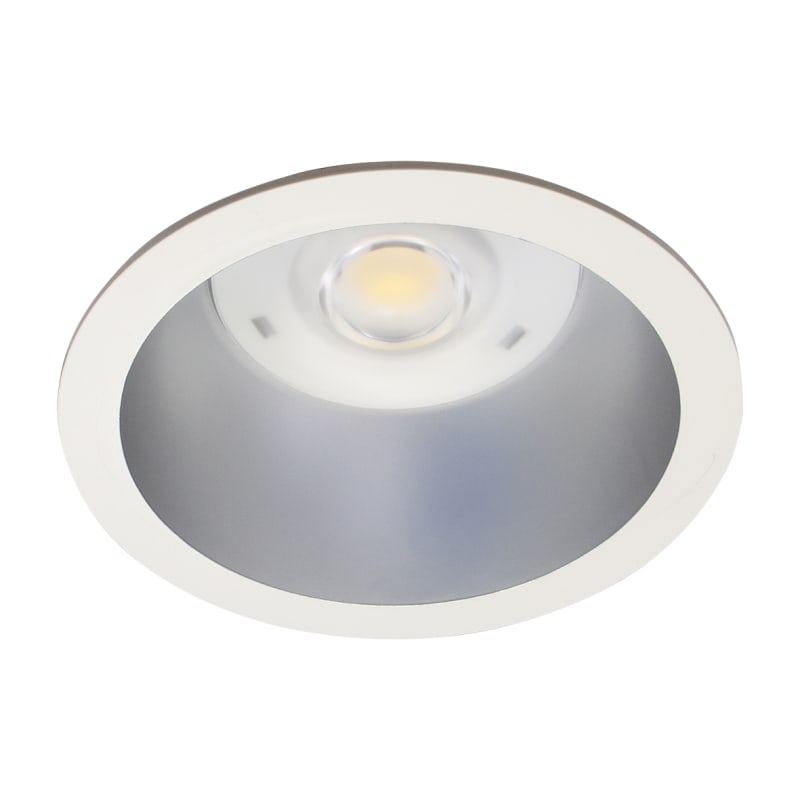

SG Armaturen 212574 RAX SOFT 150 SATIN TW LEDDIM 2700-6500K 28W 2350lm, Class II SELV, IP44/IP20, IK08, SDCM 3.
Technical Specifications
- Manufacturer part number (MPN)
- 212574
- EAN / GTIN
- 7021982125744
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Colour temperature
- 6500 K
- Efficacy
- 93 lm/W
- Lumen
- 2600lm (@6500K)
- IP Class
- IP54/IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 28W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 20, B16: 32, C10: 20, C16: 32
- Type of light source
- LED
- Luminous flux
- 2600lm (@6500K)
- Emergency lumen
- 280lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 68°
- Photobiological safety
- RG 1
- Type
- TW LEDDim
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 83
- Diameter (mm) D
- 166
- Cut-out (mm)
- 150
- Ceiling void depth (mm)
- 80
- Weight (kg) gross/net
- 0.916 / 0.77
- Packaging dimensions (mm)
- 190 x 190 x 95
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125744
- SAP 1200585034
- Code 82955966
Product Documentation
Document preview: RAX SOFT 150 Satin TW Jointim 2700-6500K (212574) — Specification sheet
