SG Armaturen

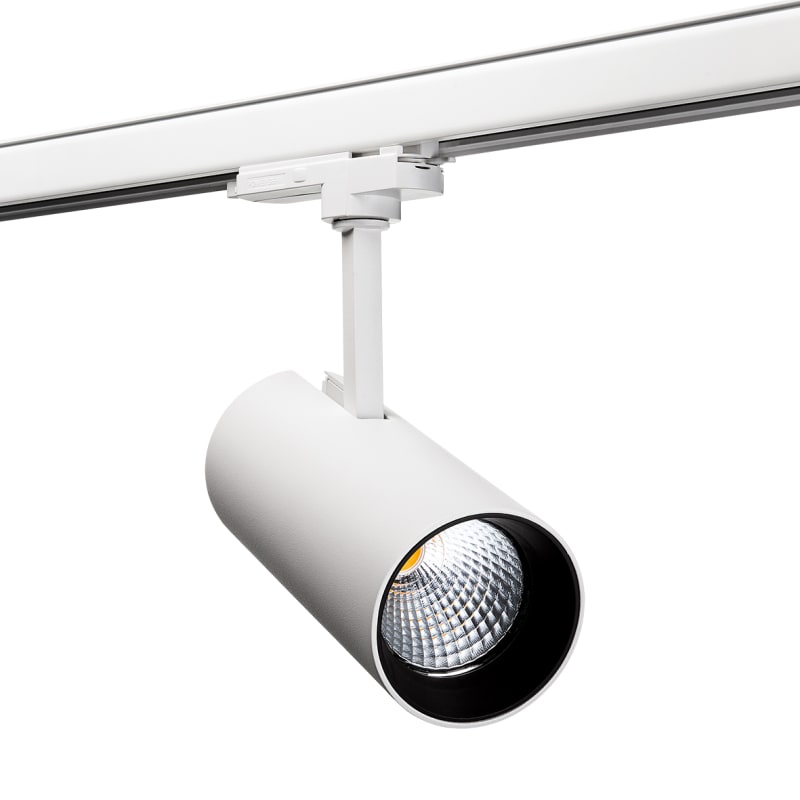

TUBE ECO 3T White 26W/930 32° DALI
Part number312450EAN / GTIN7021983124500HS code9405.99
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 312450 TUBE ECO 3T WHITE 3000K DALI, 26W, 2280lm, 88lm/W, Ra>90, SDCM3, L90/B10>100000, KL In.
Technical Specifications
- Manufacturer part number (MPN)
- 312450
- EAN / GTIN
- 7021983124500
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 26 W
- Efficacy
- 88 lm/W
- Lumen
- 2280lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 26W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2280lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Maximum ambient temperature
- 35°C
- Lifetime at max ambient temperature
- L90/B10>50,000
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 32°
- UGR
- UGR<10
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Glass
- Connection
- ShopLine DALI track (adapter included)
- Height (mm) H
- 220
- Diameter (mm) D
- 92
- Weight (kg) gross/net
- 1.35 / 1.16
- Packaging dimensions (mm)
- 306 x 142 x 105
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.99
Cross References
- EAN 7021983124500
- SAP 1200596589
- Code 82975818
Product Documentation
Document preview: TUBE ECO 3T White 26W/930 32° DALI (312450) — Specification sheet
