RAX SOFT 200 Satin 4500 40W/830 DALI
Part number212529EAN / GTIN7021982125294HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212529 RAX SOFT 200 SATIN 4500 3000K DALI 40W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212529
- EAN / GTIN
- 7021982125294
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 40 W
- Efficacy
- 111 lm/W
- Lumen
- 4110lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 37W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 4110lm
- Emergency lumen
- 380lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- UGR
- UGR<22
- Photobiological safety
- RG 1
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Cable
- Cable 5x0,75mm²
- Connection
- 5 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.2 / 1
- Packaging dimensions (mm)
- 240 x 240 x 102
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125294
- SAP 1200566411
- Code 82925902
Product Documentation
Document preview: RAX SOFT 200 Satin 4500 40W/830 DALI (212529) — Specification sheet
More from SG Armaturen
SG Armaturen
Sense Decor SKY White 600X600
212688
SG Armaturen

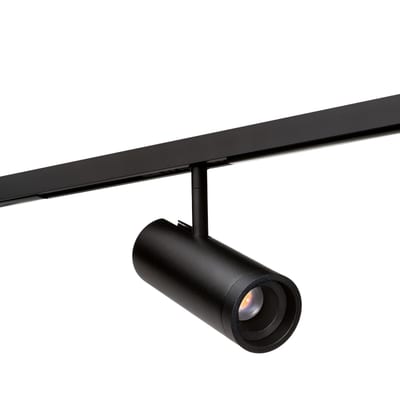

ZIP TUBE MINI ZOOM Black 3000K
320896
SG Armaturen

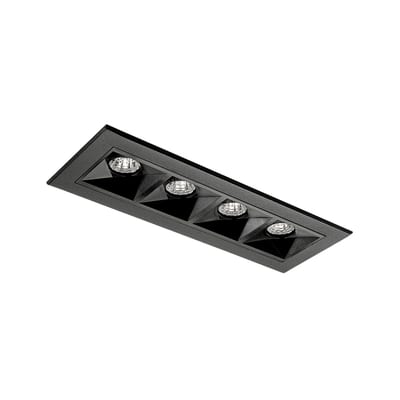

Inspire R 150 Black 3000K
321008
SG Armaturen

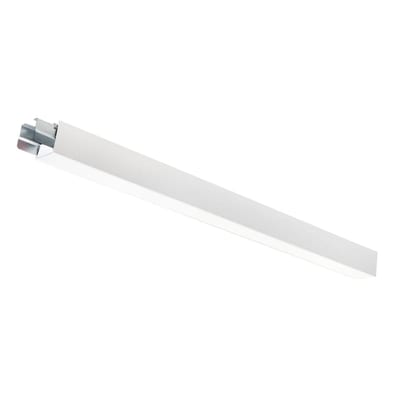

Lineal 80 840 D/In White 20W/2CCT DALI
320923
SG Armaturen

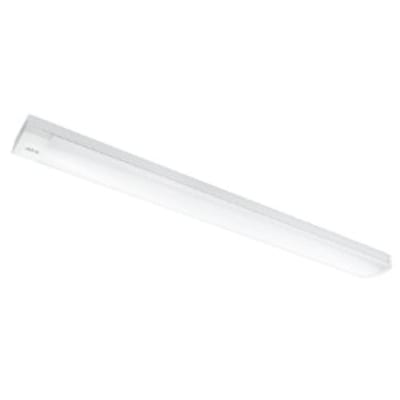

Hurdal MAXI Connect 1500 46W/840
113146
SG Armaturen

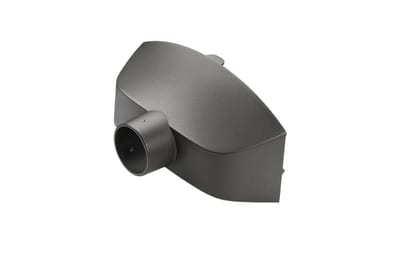

Fevik Graphite ARM/Wall bracket
623247
SG Armaturen

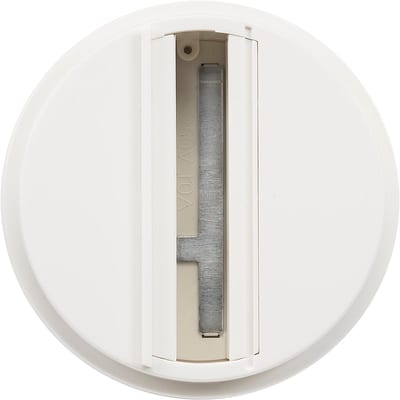

Shopline 3T Mono Bracket, White
312423
SG Armaturen

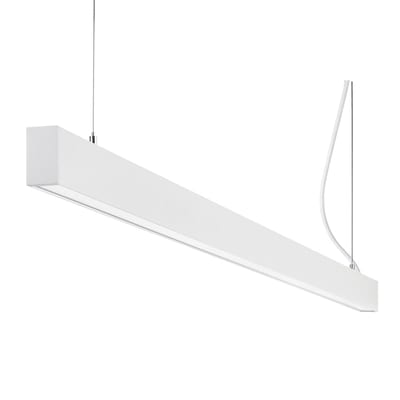

Inspire 1500 White Prism 35W/840 DIM
