SG Armaturen

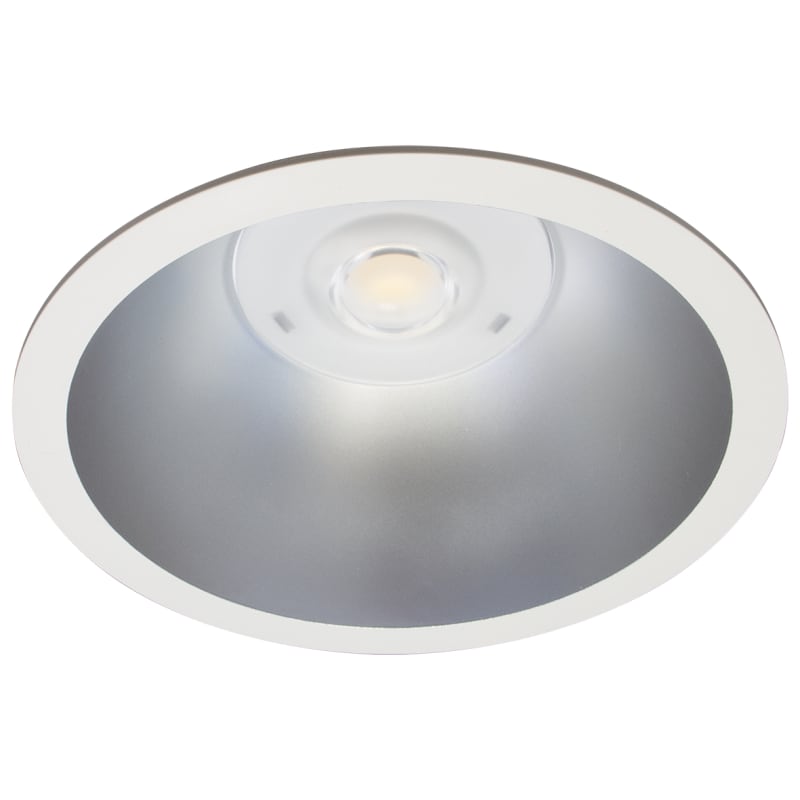

RAX SOFT 200 Satin 3000 26W/830
Part number212524EAN / GTIN7021982125249HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212524 RAX SOFT 200 SATIN 3000 3000K 26W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212524
- EAN / GTIN
- 7021982125249
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 26 W
- Replaces
- 8246093271
- Efficacy
- 120 lm/W
- Lumen
- 2760lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 23W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 2760lm
- Emergency lumen
- 380lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- UGR
- UGR<22 up to 800 mA/3300 lm
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 93
- Diameter (mm) D
- 216
- Cut-out (mm)
- 200
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.2 / 1
- Packaging dimensions (mm)
- 242 x 242 x 102
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125249
- SAP 1200566406
- Code 82925910
Product Documentation
Document preview: RAX SOFT 200 Satin 3000 26W/830 (212524) — Specification sheet
More from SG Armaturen
SG Armaturen
Junistar TUBE Round White 3X 3000K
902713
SG Armaturen
SOFT Square Frame 2XWHITE
903255
SG Armaturen
Sense Velios 600X600 White 30W/840
212924
SG Armaturen
Frosta 330 White 17W/830 Sensor DIM
211737
SG Armaturen
Switch PV Limit Switch Black
76521
SG Armaturen
Circulus White 19W/830
212001
SG Armaturen
DISC 290 White 17W/830 IK10 DALI
606041
SG Armaturen
ZIP 1T TUBE MINI Black 13W TW 40°
320606
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
