SG Armaturen

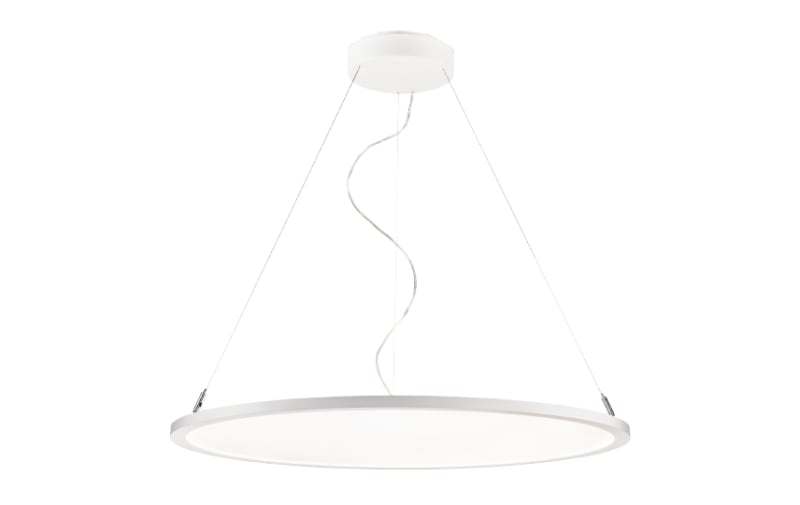

Sense 800 Pendant White 64W/830 DALI
Part number212192EAN / GTIN7021982121920HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212192 L80/B20>50 000 hours, 7510lm, 117lm/W, SDCM3, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 212192
- EAN / GTIN
- 7021982121920
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 64 W
- Efficacy
- 133 lm/W
- Lumen
- 6260lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L87>
- Mounting
- Suspended, Indoor
- System wattage
- 47W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 18, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 6260lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 60/40%
- Optic
- Opal prismatic
- UGR
- UGR<19
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 18
- Diameter (mm) D
- 795
- Weight (kg) gross/net
- 6.85 / 5.5
- Packaging dimensions (mm)
- 1085 x 865 x 85
- Device emplacement
- Indoor positioning
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- White
- Material cover
- Glass matt/satinized
- Type of grid
- Matt
- Voltage type
- AC/DC
- Type of control gear
- LED operating device current-controlled
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Outer diameter
- 795 mm
- Dimming Its Wave Reduction
- No
- No dim function
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Light outlet
- Direct
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A++
- Lowest energy efficiency class of the exchangeable lamp
- A++
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- I
- Emergency power supply integrated
- No
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 47 W
- Rated luminous flux according to IEC 62722-2-1
- 7510 lm
- Colour of light
- White
- Luminaire efficacy
- 113 lm/W
- Colour rendering index CRI
- 80-89
- Unified Glare Ratio (UGR)
- 14.5
- Power factor
- 0.9
- Constant light output (CLO)
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 795 mm
- Height/depth
- 18 mm
- Length
- 18 mm
- Diameter
- 795 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 5
- Conductor cross section
- 2.5 mm²
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982121920
- SAP 1200457301
- Code 82528465
Product Documentation
Document preview: Sense 800 Pendant White 64W/830 DALI (212192) — Specification sheet
